(08-062) - HYDRAULIC CYLINDER ASSEMBLY (MESH WRAP) (2 INCH BORE DIAMETER X 8 INCH STROKE)

Запчасти Case IH RS561 (08-062) - HYDRAULIC CYLINDER ASSEMBLY (MESH WRAP) (2 INCH BORE DIAMETER X 8 INCH STROKE) (07) - HYDRAULICS

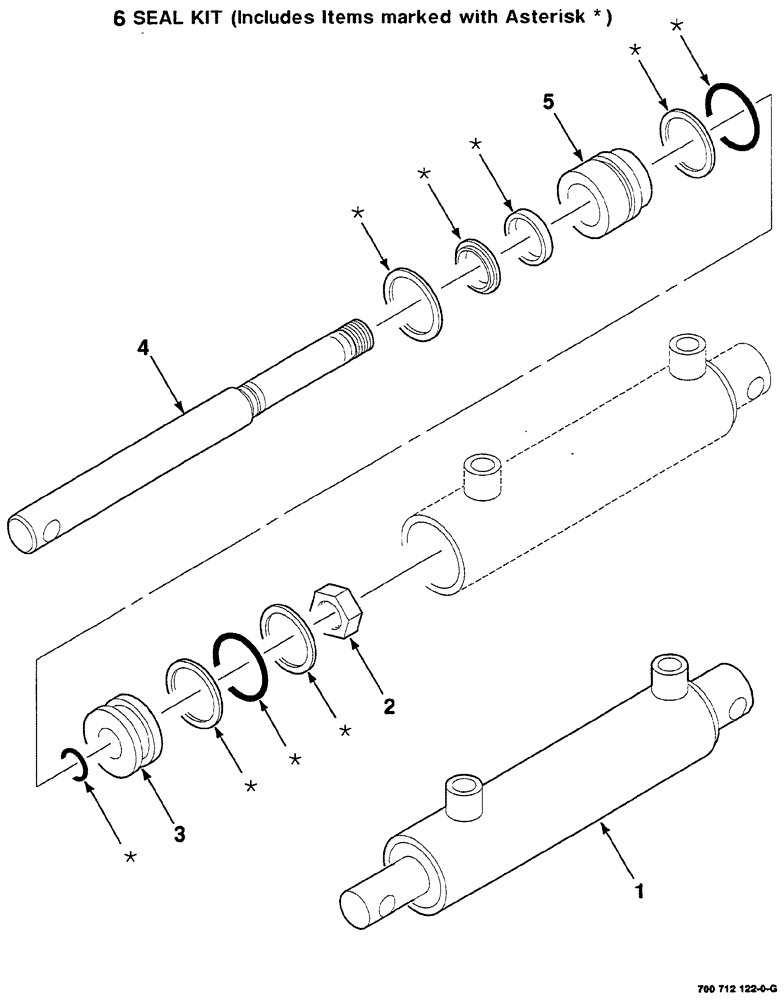

Схема запчастей Case IH RS561 - (08-062) - HYDRAULIC CYLINDER ASSEMBLY (MESH WRAP) (2 INCH BORE DIAMETER X 8 INCH STROKE) (07) - HYDRAULICS
4
1
3
2
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700712122

CYLINDER

HYDRAULIC ASM. COMPLETE (2 inch bore diameter x 8 inch stroke)

1шт.

2

700707418

JAM NUT

hex jam, 7/8-14

1шт.

3

700707419

PISTON

1шт.

4

700709465

ROD

1шт.

5

700711112

GUIDE

ROD

1шт.

6

700711114

SEAL KIT

seal and O-ring repair, includes items in art marked with asterisk

1шт.

Выбрано товаров: 6
