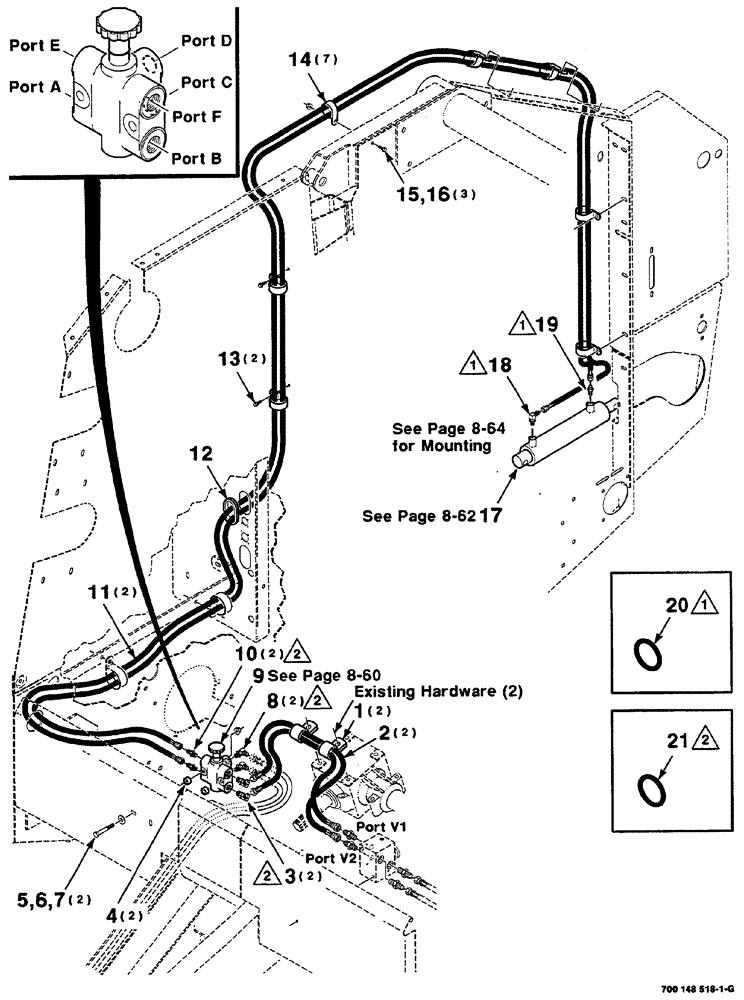

Запчасти Case IH RS561 (08-058) - HYDRAULIC ASSEMBLY (MESH WRAP) (07) - HYDRAULICS

1

S95446

CLAMP,1 5/16", Insul, 1/2" Bolt

hose

2шт.

2

700715340

HOSE

hydraulic

2шт.

3

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

(Incl. Ref 21)

2шт.

4

6255350

SPACER

2шт.

5

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

6

496-81010

WASHER

hardened wide plain, 3/8

2шт.

7

232-5316

FLANGE NUT,Flg, 3/8"-16

hex flange top lock, 3/8-16 GR/G

2шт.

8

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

(Includes Ref. 21)

2шт.

9

700715216

VALVE

ASSEMBLY selector

1шт.

10

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Straight (Incl. Ref 21)

2шт.

11

700717394

HYDRAULIC HOSE,0.38" ID x 224.41", SAE 100R1, SAE J517, SAE J516, SAE J343

hydraulic

2шт.

12

8027427

GROMMET

1шт.

13

7702012

SELF-TAP SCREW,3/8" - 16 x 1"

hex washer head thread cutting tapping. 3/8-16 x 1

2шт.

14

CAS755777

CLAMP

7шт.

15

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

3шт.

16

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 GR/G

3шт.

17

700712122

CYLINDER

ASSEMBLY hydraulic

1шт.

18

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

ELBOW 90° (Includes: Ref. 20)

1шт.

19

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

straight (Includes: Ref. 20)

1шт.

20

738468

O-RING

1шт.

Part of Ref. 18 and 19, part numbers 218-5280, and 218-5351

1шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of Ref. 3, 8, and 10, part numbers 218-5136, 218-5106, and 218-5059

1шт.
