(08-056) - HYDRAULIC CYLINDER ASSEMBLY (KICKER) (2 INCH BORE X 12 INCH STROKE)

Запчасти Case IH RS561 (08-056) - HYDRAULIC CYLINDER ASSEMBLY (KICKER) (2 INCH BORE X 12 INCH STROKE) (07) - HYDRAULICS

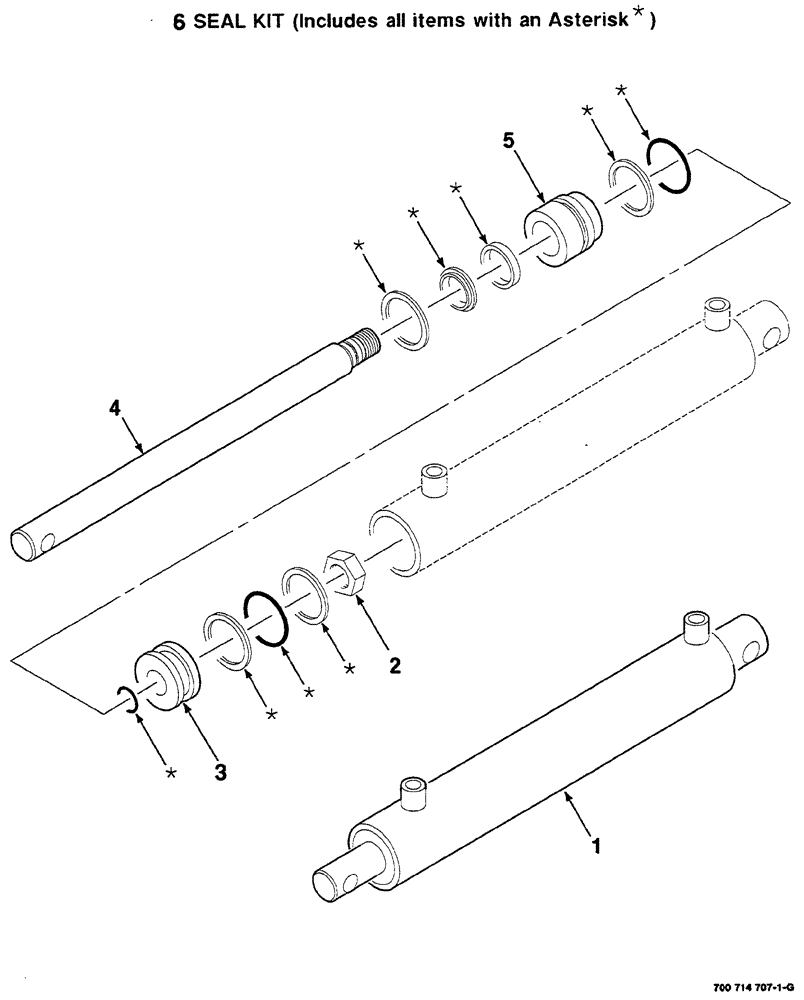

Схема запчастей Case IH RS561 - (08-056) - HYDRAULIC CYLINDER ASSEMBLY (KICKER) (2 INCH BORE X 12 INCH STROKE) (07) - HYDRAULICS
3
5
1
6
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700714707

CYLINDER

HYDRAULIC COMPLETE (2 inch bore x 12 inch stroke)

1шт.

2

700707418

JAM NUT

hex jam, 7/8-14

1шт.

3

700707419

PISTON

1шт.

4

700707421

ROD

1шт.

5

700711112

GUIDE

ROD

1шт.

6

700711954

SEAL KIT

KIT and O-ring repair, includes items in art marked with asterisk

1шт.
