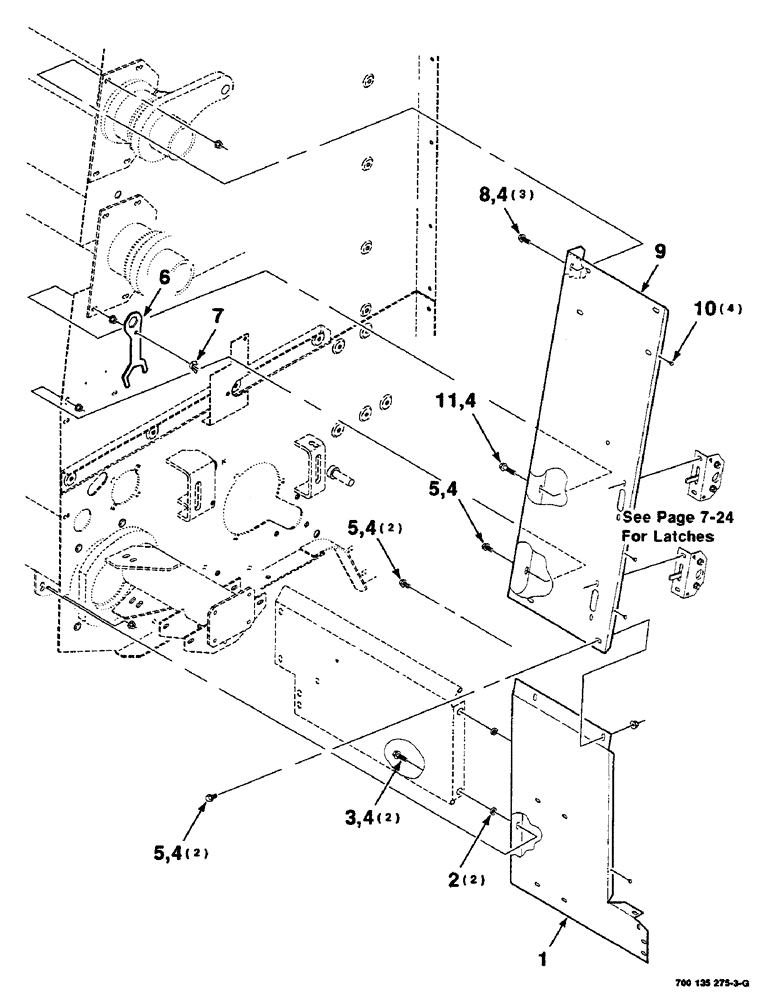

Запчасти Case IH RS551 (7-18) - LATCH SUPPORT ASSEMBLIES, LEFT (12) - MAIN FRAME

1

700135677

SHIELD

- lower, left

1шт.

2

700150182

SPACER

2шт.

3

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

2шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

11шт.

5

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

5шт.

6

700135666

SPECIAL WRENCH

WRENCH

1шт.

7

129-410

WING NUT,3/8"-16

3/8-16 WING NUT GR2

1шт.

8

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

3шт.

9

700150809

SHIELD

- upper, left (Includes decals)

1шт.

10

700715104

BUMPER

4шт.

11

700711084

BOLT

3/8-16 X 1-1/2 HFS GR8

1шт.
