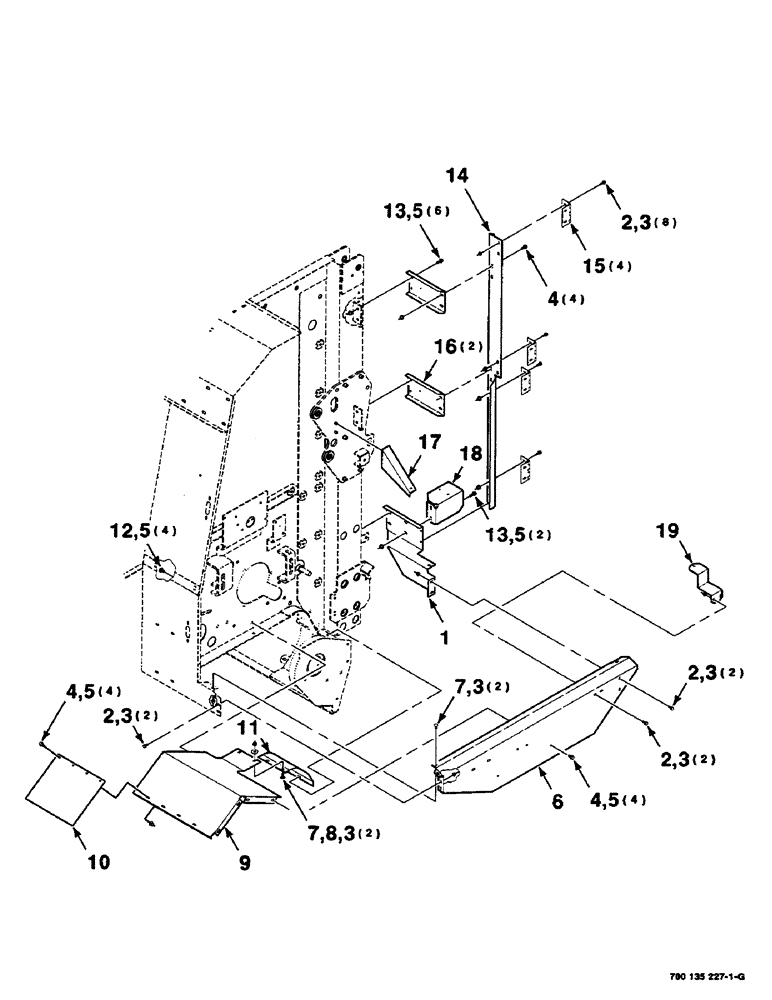

Запчасти Case IH RS551 (7-14) - SHIELD SUPPORT AND HINGE ASSEMBLIES, LEFT (12) - MAIN FRAME

1

700135682

SUPPORT

- L

1шт.

2

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 X 3/4 HWHMS

14шт.

3

704239

FRONT AXLE

5/16-18 HFSLN

18шт.

4

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 X 3/4 HWHMS

12шт.

5

704734

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

20шт.

6

700135679

SHIELD

- L

1шт.

7

7700461

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 X 3/4 RHSSNB

4шт.

8

700702916

WASHER

3/8 HARDENED WIDE PLAIN WASHER

2шт.

9

700150824

SHIELD

- L

1шт.

10

700718401

SHIELD

- rubber

1шт.

11

700150883

SHIELD

- lower, L

1шт.

12

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 X 3/4 RHSNB

4шт.

13

7883382

BOLT,Hex, 3/8" - 16 x 1", Gr 120M

3/8-16 X 1 HWHMS

8шт.

14

700150220

SUPPORT

- L

1шт.

15

700707701

HINGE

- butt

4шт.

16

700135628

SUPPORT

2шт.

17

700135684

SUPPORT

- L

1шт.

18

700132505

SUPPORT

- valve, mount

1шт.

19

700135634

SUPPORT

1шт.
