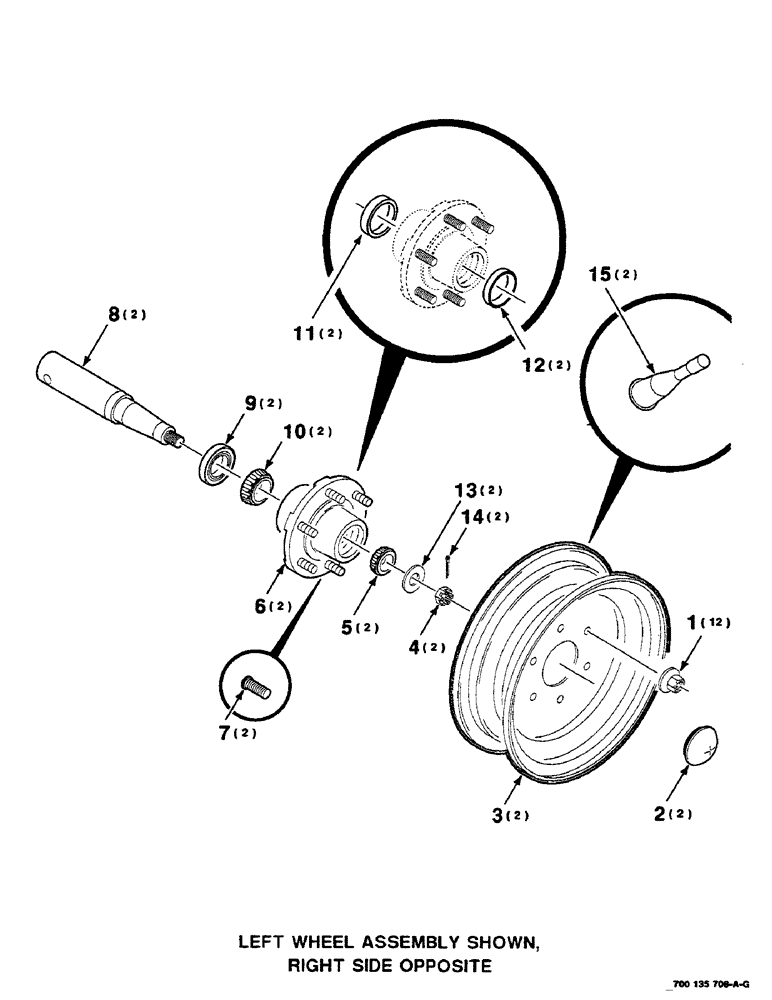

Запчасти Case IH RS551 (7-10) - WHEEL, HUB AND AXLE ASSEMBLY, 16.1 INCH (12) - MAIN FRAME

1

700715395

WHEEL NUT

9/16-18 WHEEL NUT, flanged

12шт.

2

D143405

CAP

HUB - cap

2шт.

3

700717857

RIM

WHEEL

2шт.

4

425-1314

SLOTTED NUT,7/8"-14, G5

3/4-16 SHN GR 2

2шт.

5

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

BEARING - cone, outer

2шт.

6

700714739

HUB

(Includes items 7, 11 and 12)

2шт.

7

826370

BOLT,Ribbed Nk, 9/16" - 18 x 2.12"

9/16-18 X 2.12 BOLT, stud

2шт.

8

700135709

SPINDLE

2шт.

9

491715R91

OIL SEAL

2шт.

10

300426R91

BEARING ASSY,45.618 mm ID x 25.4 mm

BEARING - cone, inner

2шт.

11

130503H

BEARING CUP

CUP - inner

2шт.

12

165964R1

BEARING CUP

CUP - outer

2шт.

13

96-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

2шт.

14

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

2шт.

15

A38261

VALVE

STEM

2шт.
