(8-30) - HYDRAULIC MANIFOLD ASSEMBLY, KICKER, 700714785 KICKER MANIFOLD ASSEMBLY COMPLETE

Запчасти Case IH RS551 (8-30) - HYDRAULIC MANIFOLD ASSEMBLY, KICKER, 700714785 KICKER MANIFOLD ASSEMBLY COMPLETE (07) - HYDRAULICS

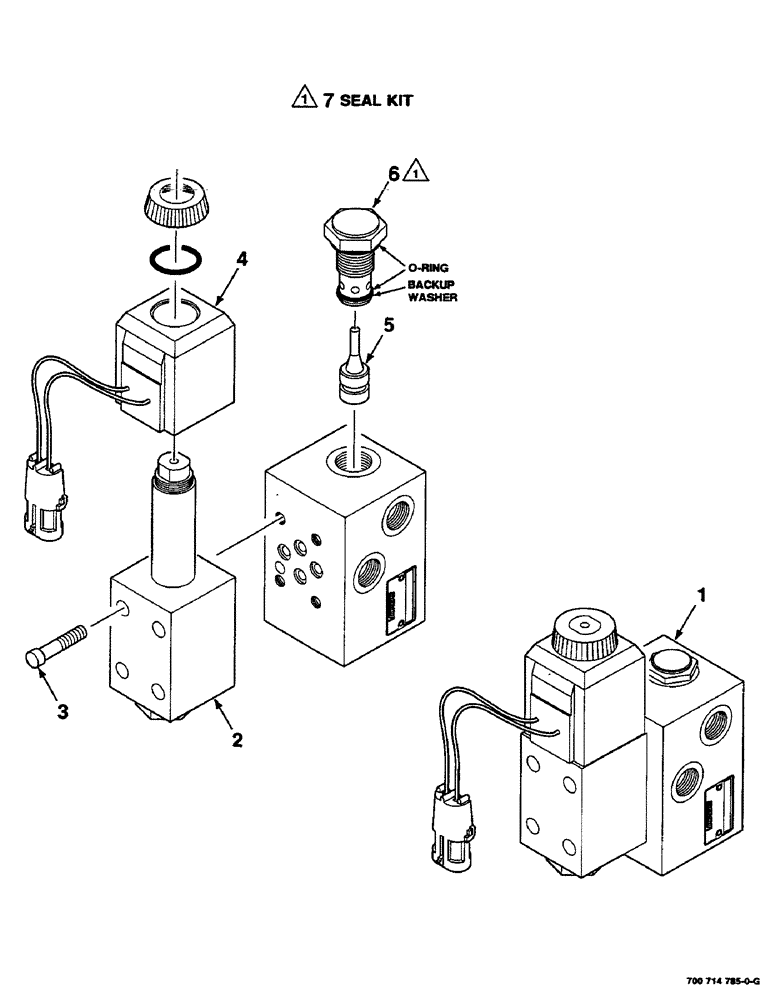

Схема запчастей Case IH RS551 - (8-30) - HYDRAULIC MANIFOLD ASSEMBLY, KICKER, 700714785 KICKER MANIFOLD ASSEMBLY COMPLETE (07) - HYDRAULICS
3
2
4
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700714785

MANIFOLD

ASSEMBLY - kicker

1шт.

2

700715653

VALVE

1шт.

3

700714189

KIT

BOLT KIT

1шт.

4

700715392

SOLENOID

COIL

1шт.

5

700715652

PISTON

PILOT PISTON

1шт.

6

700715651

VALVE

CHECK VALVE

1шт.

7

149942C1

SEAL KIT

KIT - seal

1шт.
