(8-22) - HYDRAULIC ASSEMBLY, THREADER CONTROL

Запчасти Case IH RS551 (8-22) - HYDRAULIC ASSEMBLY, THREADER CONTROL (07) - HYDRAULICS

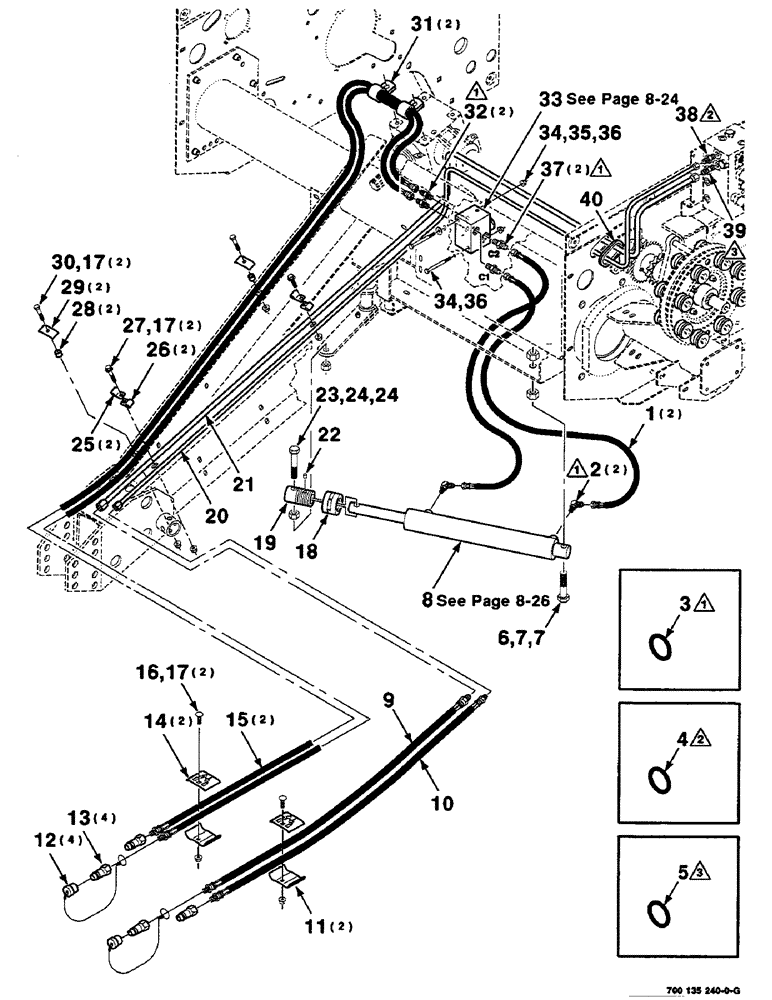

Схема запчастей Case IH RS551 - (8-22) - HYDRAULIC ASSEMBLY, THREADER CONTROL (07) - HYDRAULICS
24
17
31
30
26
10
36
27
11
4
21
23
19
38
22
35
16
3
18
20
17
34
39
13
36
32
25
12
17
28
5
8
40
29
33
7
34
37
14
2
9
7
15
6
1
24
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700714806

HYDRAULIC HOSE,0.25" ID x 39.37", SAE J517, SAE J516, SAE J343

HOSE - hydraulic

2шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

(Includes item 3) 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

2шт.

3

738468

O-RING

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

3/4-10 X 3-1/4 C

1шт.

7

425-1012

NUT,3/4"-10, G5

3/4-10 H

2шт.

8

700718182

CYLINDER

ASSEMBLY - hydraulic

1шт.

9

700718199

HYDRAULIC HOSE,0.63" ID x 58.07", SAE 100R2, SAE J517, SAE J343, SAE J516

HOSE - hydraulic

1шт.

10

7072135

HYDRAULIC HOSE,0.50" ID x 58.00", SAE 100R2

HOSE - hydraulic

1шт.

11

700129086

CLAMP

2шт.

12

700718082

CAP

- dust

4шт.

13

1-7141

FITTING

COUPLER - quick disconnect

4шт.

14

700129085

CLAMP

2шт.

15

700716257

HYDRAULIC HOSE,0.38" ID x 129.92", SAE J516, SAE J343

HOSE - hydraulic

2шт.

16

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

2шт.

17

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

6шт.

18

700135810

NUT

- cylinder stop

1шт.

19

700135809

STOP

- cylinder

1шт.

20

700716243

LINE

- hydraulic, left outer

1шт.

21

700716242

LINE

- hydraulic, left inner

1шт.

22

700716646

STOP

1шт.

23

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

24

425-1010

NUT,5/8"-11, G5

2шт.

25

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

2шт.

26

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

2шт.

27

700711134

SCREW

3/8-16 X 1-3/4 HFS GR8

2шт.

28

568395R1

SPACER,5/8" Tube x 5/8"

2шт.

29

700126495

CLAMP

2шт.

30

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

31

S95446

CLAMP,1 5/16", Insul, 1/2" Bolt

2шт.

32

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - straight (Includes item 3)

2шт.

33

700718237

MANIFOLD

VALVE ASSEMBLY - flow control

1шт.

34

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

5/16-18 X 3-1/2 C

2шт.

35

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

1шт.

36

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

2шт.

37

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - straight (Incl. item 3)

2шт.

38

51200289

FITTING

CONNECTOR - straight (Includes item 4)

1шт.

39

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, HYD., , Straight (Incl. item 5) 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

40

8027427

GROMMET

1шт.
