(8-20) - HYDRAULIC CYLINDER ASSEMBLY, CLUTCH, 700711910 HYDRAULIC CYLINDER ASSEMBLY COMPLETE

Запчасти Case IH RS551 (8-20) - HYDRAULIC CYLINDER ASSEMBLY, CLUTCH, 700711910 HYDRAULIC CYLINDER ASSEMBLY COMPLETE (07) - HYDRAULICS

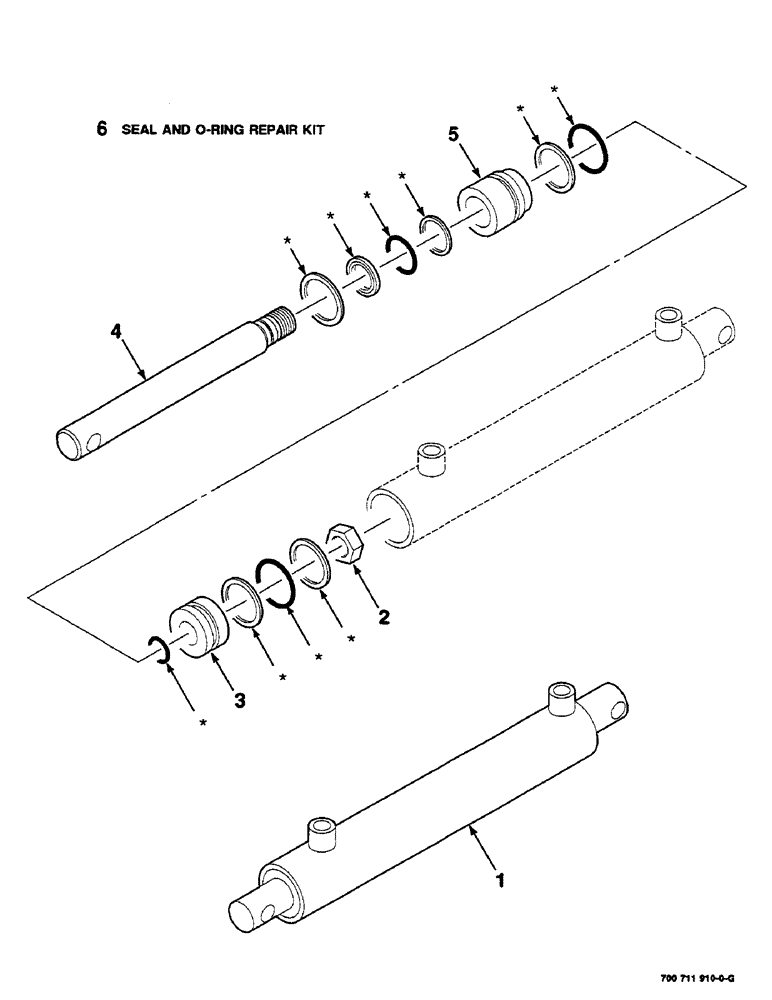

Схема запчастей Case IH RS551 - (8-20) - HYDRAULIC CYLINDER ASSEMBLY, CLUTCH, 700711910 HYDRAULIC CYLINDER ASSEMBLY COMPLETE (07) - HYDRAULICS
3
1
4
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700711910

CYLINDER ASSY.

HYDRAULIC CYLINDER ASM. COMPLETE (2 In Bore x 4 In Stroke)

1шт.

2

700707418

JAM NUT

7/8-14 UNF HJN

1шт.

3

700707419

PISTON

1шт.

4

700711955

PISTON ROD

ROD - piston

1шт.

5

700711112

GUIDE

- rod

1шт.

6

700711114

SEAL KIT

SEAL AND O-RING REPAIR KIT, Includes items in art marked with asterisk

1шт.
