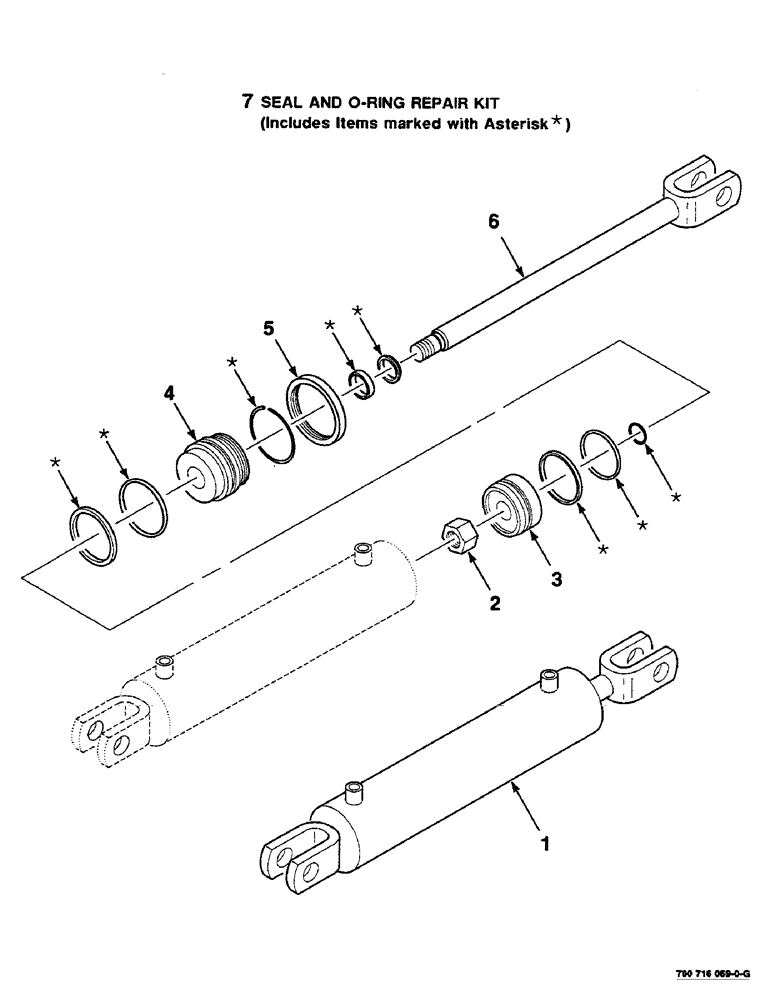

Запчасти Case IH RS551 (8-16) - HYD. CYL. ASSY., UPPER BALE TENSION, 700716069 HYD. CYL. ASSY. COMPLETE, 2-3/4" BORE X 12" STROKE (07) - HYDRAULICS

1

700716069

CYLINDER

HYDRAULIC CYLINDER ASM. COMPLETE (2-3/4 Inch Bore x 12 Inch Stroke)

1шт.

2

774315

NUT

7/8-14 HTLN GR C

1шт.

3

700716633

PISTON

1шт.

4

700718153

GUIDE

- rod

1шт.

5

700716637

NUT

SPANNER NUT

1шт.

6

700718152

ROD

- piston

1шт.

7

700718151

KIT

SEAL AND O-RING REPAIR KIT, Includes items in art marked with asterisk

1шт.
