(8-10) - HYDRAULIC SHUTOFF VALVE ASSEMBLY, TAILGATE, 700717995 HYDRAULIC SHUTOFF VALVE COMPLETE

Запчасти Case IH RS551 (8-10) - HYDRAULIC SHUTOFF VALVE ASSEMBLY, TAILGATE, 700717995 HYDRAULIC SHUTOFF VALVE COMPLETE (07) - HYDRAULICS

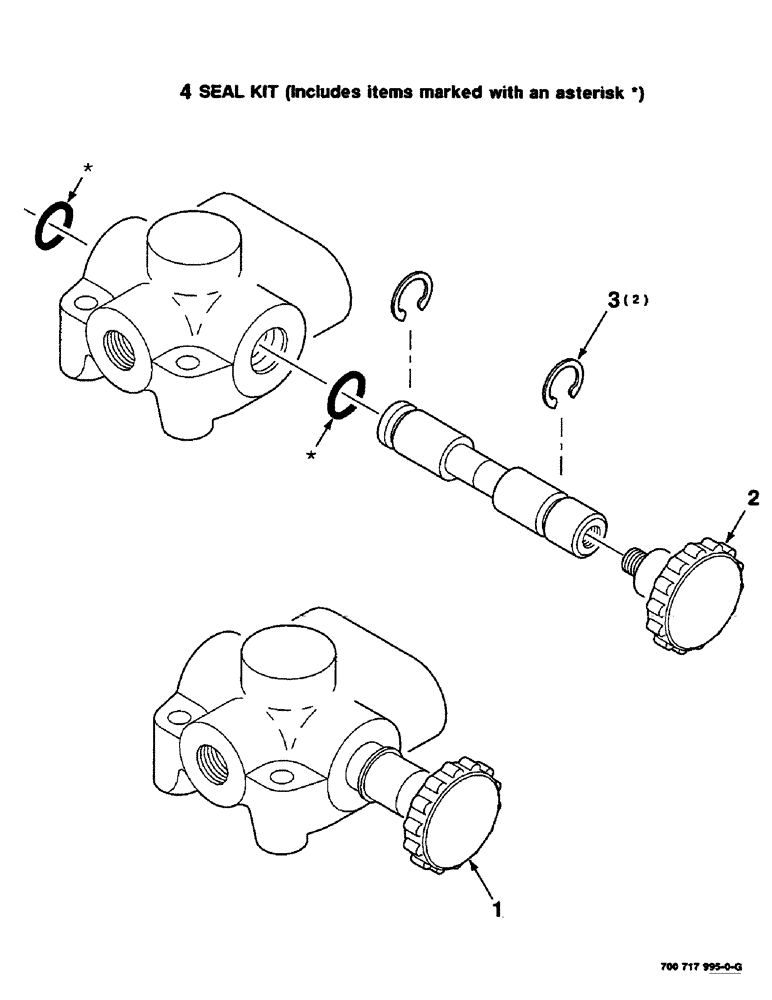

Схема запчастей Case IH RS551 - (8-10) - HYDRAULIC SHUTOFF VALVE ASSEMBLY, TAILGATE, 700717995 HYDRAULIC SHUTOFF VALVE COMPLETE (07) - HYDRAULICS
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700717995

VALVE

- shutoff

1шт.

2

700712911

KNOB

1шт.

3

700704943

SEALING RING

RING - retainer

2шт.

4

700704366

SEAL KIT

SEAL KIT

1шт.
