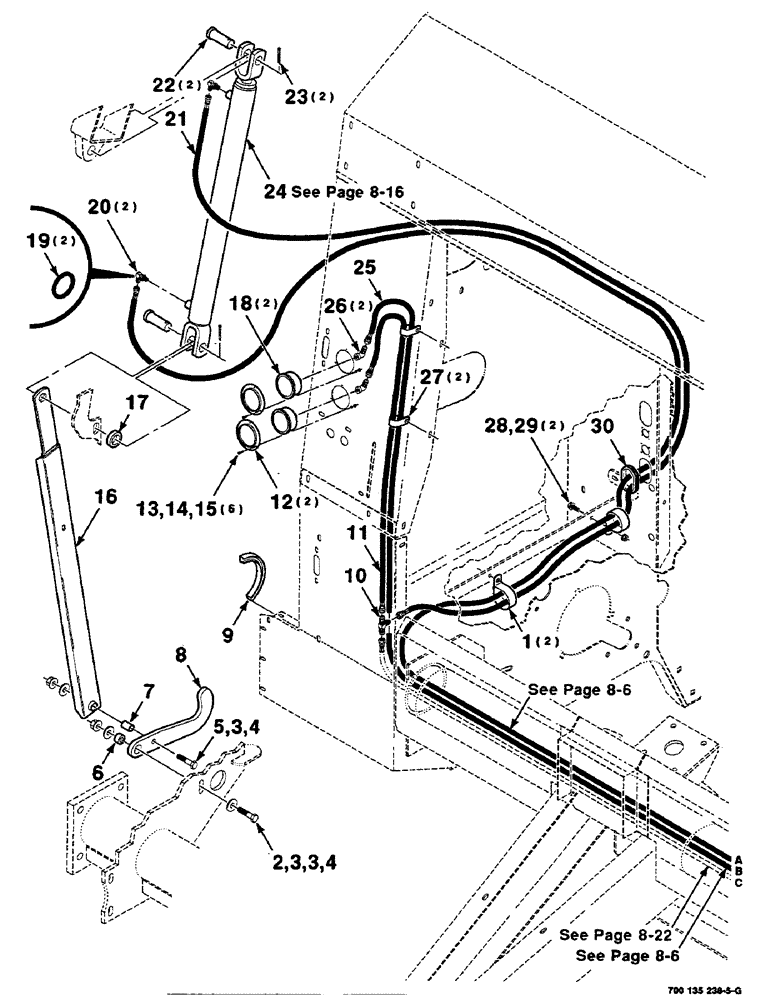

Запчасти Case IH RS551 (8-08) - HYDRAULIC CONTROL ASSEMBLY, RIGHT, WITH MESH WRAP (07) - HYDRAULICS

1

7041015

CLAMP

2шт.

2

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

3

700711557

WASHER

1/2 HARDENED WIDE PLAIN WASHER

3шт.

4

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

2шт.

5

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

6

700132512

BUSHING

1шт.

7

700132513

BUSHING

1шт.

8

700132511

LATCH

1шт.

9

700716877

ORNAMENTAL STRIP

TRIM

1шт.

10

218-593

TEE,9/16"-18, 37 Degree

- union

1шт.

11

700718469

HYDRAULIC HOSE,0.25" ID x 55.12", SAE J516, SAE J343

HOSE - hydraulic

1шт.

12

700709292

FLANGE

- gauge, clamp

2шт.

13

440-1068

SCREW,Cross Pan Hd, #6-32 x 1/2"

#6-32 X 1/2 CRPHMS GR60M

6шт.

14

492-11006

LOCK WASHER,#6

Washer, Lock, #6

6шт.

15

225-14106

NUT,#6-32

6шт.

16

700147502

LINK

STRAP WA

1шт.

17

700120629

SPACER

1шт.

18

700709290

GAUGE

- pressure

2шт.

19

738468

O-RING

2шт.

20

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

(Includes item 19) 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

21

700716462

HYDRAULIC HOSE,0.38" ID x 85.63", SAE J516, SAE J343, SAE 100R17

HOSE - hydraulic

1шт.

22

700710292

PIN

- clevis, special

2шт.

23

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

24

700717928

CYLINDER

ASSEMBLY - hydraulic

1шт.

25

700716491

HOSE

- hydraulic

1шт.

26

218-513

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/4"-18, Fem NPTF

90 DEGREE ELBOW - connector

2шт.

27

515-23254

CLAMP,1", Insul, 3/8" Bolt

Line 1", Insul, 3/8" Bolt

2шт.

28

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

29

231-5146

FLANGE NUT,3/8"-16

2шт.

30

8027427

GROMMET

1шт.
