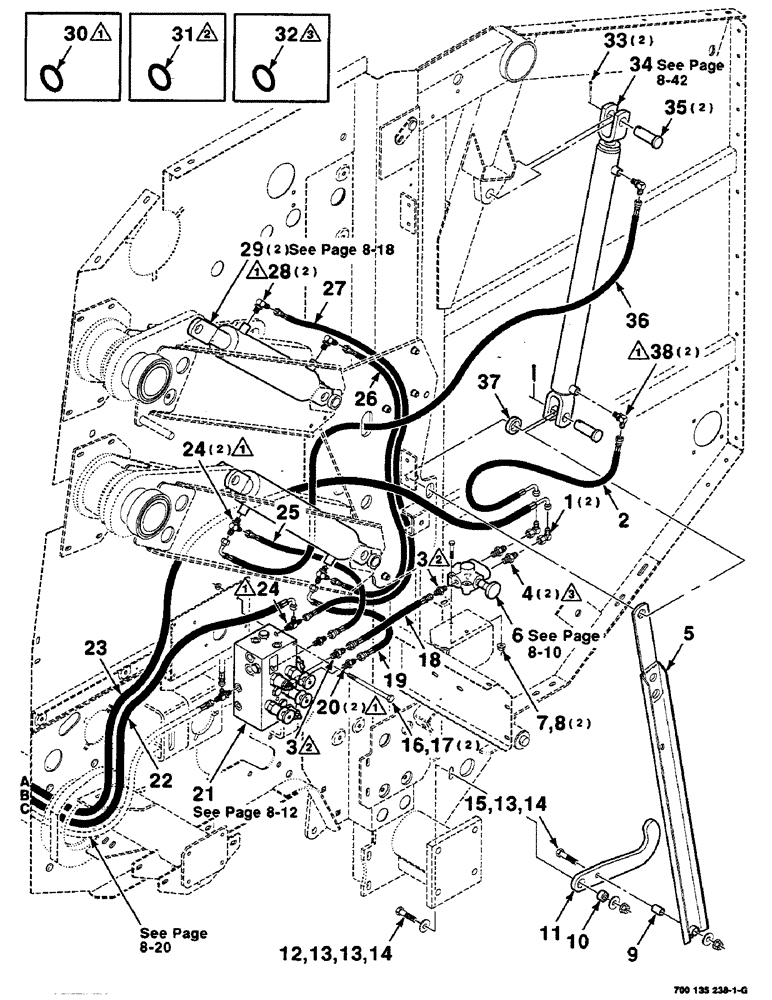

Запчасти Case IH RS551 (8-02) - HYDRAULIC CONTROL ASSEMBLY, LEFT, WITHOUT MESH WRAP (07) - HYDRAULICS

1

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

2шт.

2

700716081

HOSE

- hydraulic

1шт.

3

51200289

FITTING

CONNECTOR - straight (Includes item 31)

2шт.

4

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, HYD., , Straight (Incl. item 32) 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.

5

700147502

LINK

STRAP WA

1шт.

6

700717995

VALVE

ASSEMBLY - shutoff

1шт.

7

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

8

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

2шт.

9

700132513

BUSHING

1шт.

10

700132512

BUSHING

1шт.

11

700132511

LATCH

1шт.

12

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

13

700711557

WASHER

1/2 HARDENED WIDE PLAIN WASHER

3шт.

14

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

2шт.

15

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

16

873026

BOLT

5/16-18 X 4-1/2 C

2шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

18

700716083

HYDRAULIC HOSE,0.63" ID x 29.53", SAE 100R2 Type AT, SAE J517, SAE J516, SAE J343

HOSE - hydraulic

1шт.

19

700716073

HOSE

- hydraulic

1шт.

20

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - straight (Incl. item 30)

2шт.

21

700716323

VALVE

ASSEMBLY - bale tension

1шт.

22

700716491

HOSE

- hydraulic

1шт.

23

700716086

HOSE

- hydraulic

1шт.

24

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Straight run (Includes item 31) 9/16"-18, 37º x 9/16"-18, O-Ring Run

3шт.

25

700716082

HYDRAULIC HOSE,0.38" ID x 33.47", SAE 100R17, SAE J517, SAE J516, SAE J343

HOSE - hydraulic

1шт.

26

700714806

HYDRAULIC HOSE,0.25" ID x 39.37", SAE J517, SAE J516, SAE J343

HOSE - hydraulic

1шт.

27

700714814

HYDRAULIC HOSE,0.25" ID x 61.02", SAE J517, SAE J516, SAE J343

HOSE - hydraulic

1шт.

28

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

(Includes item 30) 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

2шт.

29

700716069

CYLINDER

ASSEMBLY - hydraulic

2шт.

30

738468

O-RING

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

33

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

34

700715833

CYLINDER

ASSEMBLY - hydraulic

1шт.

35

700710292

PIN

- clevis, special

2шт.

36

700716085

HOSE

- hydraulic

1шт.

37

700120629

SPACER

1шт.

38

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

(Includes item 30) 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

2шт.
