Запчасти Case IH RS551 (4-34) - ELECTRICAL HARNESS SERVICE PARTS, CONTINUED (06) - ELECTRICAL

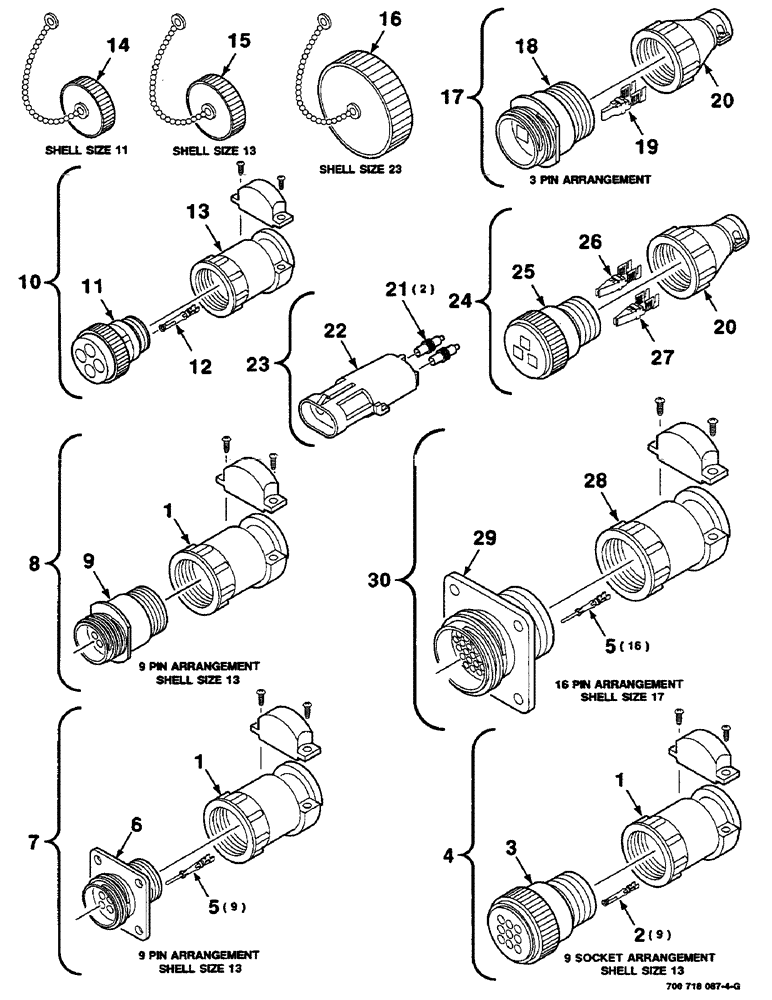

Схема запчастей Case IH RS551 - (4-34) - ELECTRICAL HARNESS SERVICE PARTS, CONTINUED (06) - ELECTRICAL
8
17
29
14
16
11
10
15
23
6
13
19
28
25
1
20
24
22
2
30
5
1
12
21
3
1
5
9
27
20
18
4
26
7

Артикул

Название

Примечание

Количество

1

700715828

CLAMP

- cable, shell size 13

1шт.

2

700713574

SOCKET

- female (18-14 Gauge)

1шт.

3

700709704

WIRE CONNECTOR

CONNECTOR - plug, female, (9 socket arrangement)

1шт.

4

700718988

KIT

- harness repair, female, 9 socket (Includes items 1, 2 and 3)

1шт.

5

700713559

PIN

- bronze, type 3

1шт.

6

700707758

CONTAINER

RECEPTACLE - square flange, male, (9 Pin Arrangement-With Seal)

1шт.

7

700718987

KIT

- harness repair, male (9 Pin) (Includes items 1, 5 and 6)

1шт.

8

700718989

KIT

- harness repair, male (9 Pin) (Includes items 1 and 9)

1шт.

9

700715850

CONNECTION,ELECTRIC

RECEPTACLE - standard sex (Shell Size 13-With Seal)

1шт.

10

700712132

REPAIR KIT

KIT - receptacle repair (Includes items 11, 12 and 13)

1шт.

11

700709232

POWER SOCKET

PLUG - standard sex

1шт.

12

700718607

TERMINAL

SOCKET - type 3, female (14-18 Gauge)

1шт.

13

700713576

CLAMP

- cable, shell size 11

1шт.

14

700713526

CAP

- sealing, shell size 11

1шт.

15

700707016

CAP

- sealing, shell size 13

1шт.

16

700712983

CAP

- sealing, shell size 23

1шт.

17

700718994

KIT

- harness repair, male (3 Pin) (Includes items 18, 19 and 20)

1шт.

18

700710659

CONTACT HOUSING

RECEPTACLE - standard sex, free hanging (3 Pin Arrangement)

1шт.

19

700710621

CONTACT HOUSING,Male, Pole

- male, type XII, 16-12 AWG

1шт.

20

225153C1

CONTACT HOUSING

CLAMP - cable, shell size 17

1шт.

21

700714829

PLUG

1шт.

22

700706399

ELEC CONNECTOR,14 - 20 SAE

CONNECTOR - shroud, 2 pin, male

1шт.

23

225127C1

PLUG

KIT - harness, seal, 2 way plug (Includes items 21 and 22)

1шт.

24

1714005

PACKAGE,SERVICE

KIT - harness repair, female end (Includes items 20, 25, 26 and 27)

1шт.

25

225165C1

ELEC CONNECTOR

CONNECTOR - 3 socket, female

1шт.

26

700710620

TERMINAL

SOCKET - female, type XII (12-16 Gauge)

1шт.

27

700709706

TERMINAL

SOCKET - female, type XII (8-10 Gauge)

1шт.

28

225141C1

MULTIPOLE CONNECTOR

CLAMP - cable, shell size 17

1шт.

29

700712676

CONNECTION,ELECTRIC

RECEPTACLE - square flange, male, (16 Pin Arrangement-With Seal)

1шт.

30

700718990

KIT

- harness repair, male (16 Pin) (Includes items 5, 28 and 29)

1шт.

Выбрано товаров: 30
