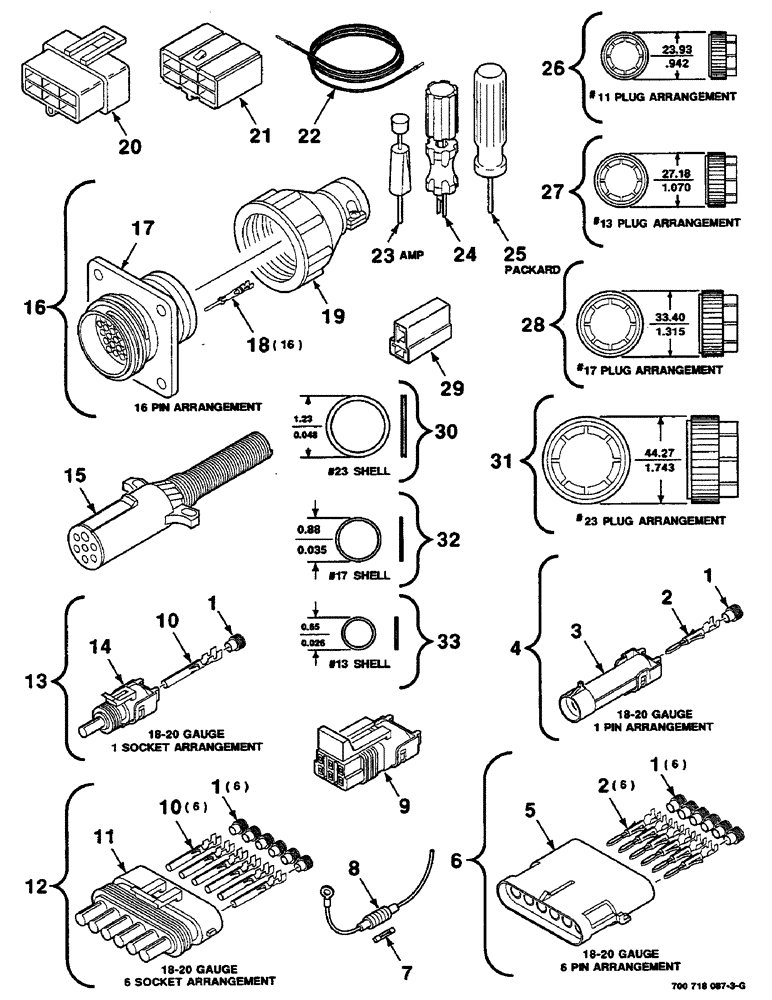

Запчасти Case IH RS551 (4-32) - ELECTRICAL HARNESS SERVICE PARTS, CONTINUED (06) - ELECTRICAL

1

700706400

PLUG

SEAL (18-20 Gauge)

1шт.

2

700706401

TERMINAL

PIN - male (18-20 Gauge)

1шт.

3

245481C1

CONNECTION,ELECTRIC

CONNECTOR - 1 pin, male

1шт.

4

700718621

KIT

- harness repair, 1 pin, male (Includes items 1, 2 and 3)

1шт.

5

700718638

CONNECTOR, ELEC

CONNECTOR - 6 pin, male

1шт.

6

700718613

KIT

- harness repair, 6 pin, male (Includes items 1, 2 and 5)

1шт.

7

700718053

FUSE

- 20 Amp slow blow

1шт.

8

700718054

HOLDER

FUSE HOLDER ASM

1шт.

9

700718792

SOCKET

CONNECTOR - female, 6 socket, sealed

1шт.

10

700708760

ELEC. TERMINAL PIN,18 - 20 SAE

SOCKET - female, (18-20 Gauge)

1шт.

11

700718581

CABLE

CONNECTOR - 6 socket, female

1шт.

12

700718614

KIT

- harness repair, 6 socket, female (Includes items 1, 10 and 11)

1шт.

13

700718617

KIT

- harness repair, 1 socket, female (Includes items 1, 10 and 14)

1шт.

14

L124720

CONNECTION,ELECTRIC

CONNECTOR - 1 socket, female

1шт.

15

700715341

PLUG

- 7 pin domestic

1шт.

16

700718790

KIT

- harness repair, male (16 Pin) (Includes items 17, 18 and 19)

1шт.

17

700712676

CONNECTION,ELECTRIC

RECEPTACLE - square flange, male, (16 Pin Arrangement-With Seal)

1шт.

18

700708757

ELEC. TERMINAL PIN,18 - 16 SAE

PIN - type 3, male (16-18 Gauge)

1шт.

19

225153C1

CONTACT HOUSING

CLAMP - cable, shell size 17

1шт.

20

700718639

CONNECTOR, ELEC

CONNECTOR - 6 way, male

1шт.

21

892136C1

ELEC CONNECTOR,Female

CONNECTOR - 6 way, Female

1шт.

22

700708333

WIRE

- test

1шт.

23

131503C1

TOOL

- connector repair, Amp

1шт.

24

700707014

TERMINAL CONNECTOR

TOOL - connector repair

1шт.

25

700707012

TERMINAL CONNECTOR

TOOL - connector repair, packard

1шт.

26

60-6126T2

CONNECTION

RING - coupling

1шт.

27

60-6127T2

CONNECTION

RING - coupling

1шт.

28

1301191C1

CONNECTION

RING - coupling

1шт.

29

877291R1

ELEC CONNECTOR,Female

CONNECTOR - two contact, 56 series

1шт.

30

700711660

SEAL

1шт.

31

60-6129T2

CONNECTION

RING - coupling

1шт.

32

700711829

SEAL

1шт.

33

700712896

SEAL

- peripheral

1шт.
