(4-30) - ELECTRICAL HARNESS SERVICE PARTS, CONTINUED

Запчасти Case IH RS551 (4-30) - ELECTRICAL HARNESS SERVICE PARTS, CONTINUED (06) - ELECTRICAL

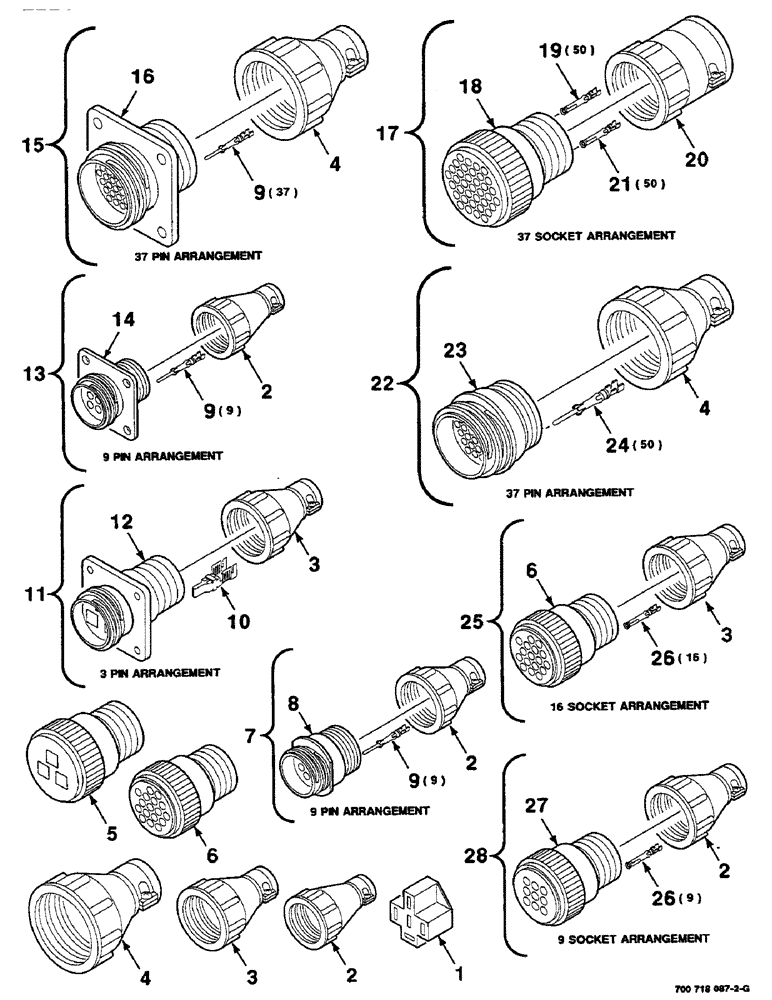

Схема запчастей Case IH RS551 - (4-30) - ELECTRICAL HARNESS SERVICE PARTS, CONTINUED (06) - ELECTRICAL
2
27
4
3
5
15
4
2
13
26
2
19
25
28
9
4
17
14
9
1
6
11
2
26
10
12
24
18
21
23
7
6
20
22
3
8
16
3
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700718615

CONNECTOR, ELEC

CONNECTOR - 4 socket, female

1шт.

2

700709708

CLAMP

- cable, shell size 13

1шт.

3

225153C1

CONTACT HOUSING

CLAMP - cable, shell size 17

1шт.

4

245491C1

ELEC CONNECTOR

CLAMP - cable, standard, shell size 23

1шт.

5

225165C1

ELEC CONNECTOR

CONNECTOR - 3 socket, female

1шт.

6

225171C1

ELEC CONNECTOR,Female, 16 Pin

CONNECTOR - plug, female, (16 Socket Arrangement)

1шт.

7

700718618

KIT

- harness repair, male (9 Pin) (Includes items 2, 8 and 9)

1шт.

8

700708079

WIRE CONNECTOR

RECEPTACLE - pin, male (9 Pin Arrangement)

1шт.

9

700708757

ELEC. TERMINAL PIN,18 - 16 SAE

PIN - type 3, male (16-18 Gauge)

1шт.

10

700709767

CONTACT

- male, type XII

1шт.

11

700718610

KIT

- harness repair, male (3 Pin) (Includes items 3, 10 and 12)

1шт.

12

225164C1

ELEC CONNECTOR

RECEPTACLE - square flange, male, (3 Pin Arrangement)

1шт.

13

700718612

KIT

- harness repair, male (9 Pin) (Includes items 2, 9 and 14)

1шт.

14

700707758

CONTAINER

RECEPTACLE - square flange, male, (13-9 Arrangement-With Seal)

1шт.

15

700718609

KIT

- harness repair, male (37 Pin) (Includes items 4, 9 and 16)

1шт.

16

700718583

CONNECTOR, ELEC

RECEPTACLE - square flange, male, (37 Pin Arrangement)

1шт.

17

700707004

REPAIR KIT

KIT - harness repair, 37 socket, female (Includes items 18, 19, 20 and 21)

1шт.

18

245490C1

ELEC CONNECTOR,Female, 37 Pin

CONNECTOR - plug, female, (37 Socket Arrangement)

1шт.

19

700718608

TERMINAL

SOCKET - type 3, female (20-24 Gauge)

1шт.

20

131499C1

CLAMP

- cable, shell size 23

1шт.

21

700718607

TERMINAL

SOCKET - type 3, female (14-18 Gauge)

1шт.

22

700707003

REPAIR KIT

KIT - harness repair, male (37 Pin) (Includes items 4, 23 and 24)

1шт.

23

225138C1

CONNECTOR, ELEC

CONNECTOR - male, 37 pin arrangement

1шт.

24

700718605

TERMINAL

PIN - type 3, (20-24 Gauge)

1шт.

25

700718611

KIT

- harness repair, female (16 Socket) (Includes items 3, 6 and 26)

1шт.

26

700708758

TERMINAL

SOCKET - type 3, female, (16-18 Gauge)

1шт.

27

700709704

WIRE CONNECTOR

CONNECTOR - plug, female, (9 socket arrangement)

1шт.

28

700718683

KIT

- harness repair, female (9 Socket) (Includes items 3, 26 and 27)

1шт.
