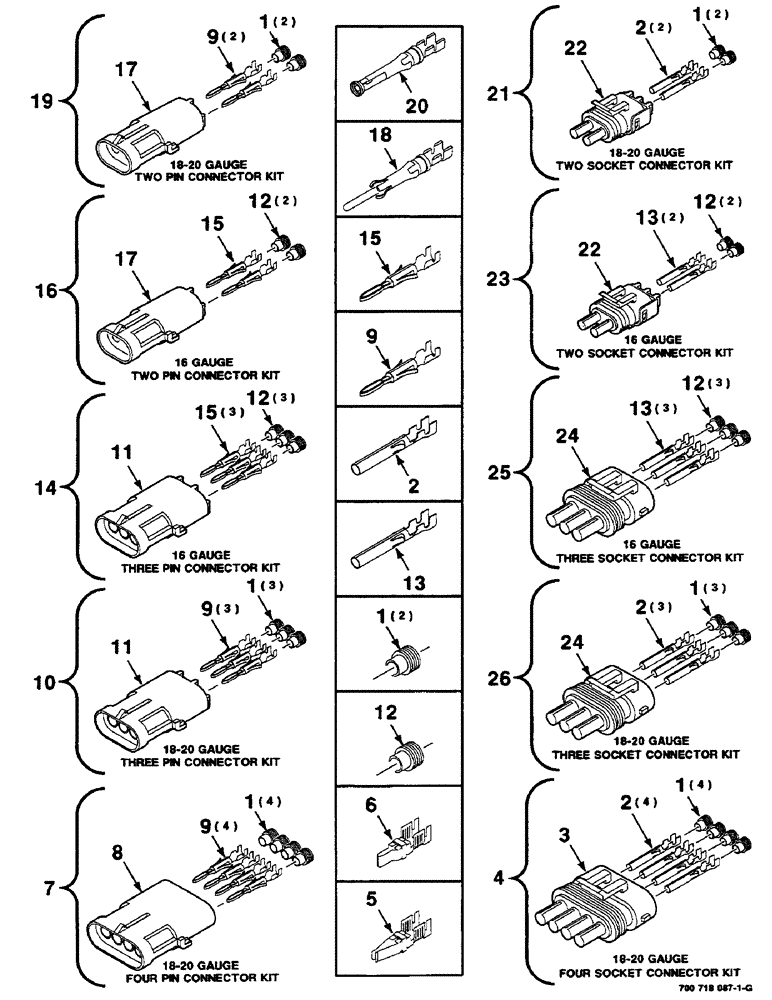

Запчасти Case IH RS551 (4-28) - ELECTRICAL HARNESS SERVICE PARTS (06) - ELECTRICAL

1

700706400

PLUG

SEAL (18-20 Gauge)

1шт.

2

700708760

ELEC. TERMINAL PIN,18 - 20 SAE

SOCKET - female (18-20 Gauge)

1шт.

3

700708963

WIRE CONNECTOR

CONNECTOR - tower, 4 socket, female

1шт.

4

700707002

REPAIR KIT

KIT - harness repair, 4 socket, female, (Includes items 1, 2 and 3)

1шт.

5

700709706

TERMINAL

SOCKET - female, type XII

1шт.

6

700709767

CONTACT

- male, type XII

1шт.

7

700709354

REPAIR KIT

KIT - harness repair, 4 pin, shroud, male (Includes items 1, 8 and 9)

1шт.

8

700708964

WIRE CONNECTOR

CONNECTOR - shroud, 4 pin, male

1шт.

9

700706401

TERMINAL

PIN - male (18-20 Gauge)

1шт.

10

700718599

KIT

- harness repair, shroud, 3 pin, male (Includes items 1, 9 and 11)

1шт.

11

700706413

ELEC CONNECTOR

CONNECTOR - shroud, 3 pin, male

1шт.

12

225125C1

SEAL

(16 Gauge)

1шт.

13

700718576

TERMINAL CONNECTOR

SOCKET - female (16 Gauge)

1шт.

14

700718531

KIT

- harness repair, shroud, 3 pin, male, 16 gauge (Includes items 11, 12 and 15)

1шт.

15

700718530

TERMINAL CONNECTOR

PIN - male (16 Gauge)

1шт.

16

700718588

KIT

- harness repair, 2 pin, male, 16 gauge (Includes items 12, 15 and 17)

1шт.

17

700706399

ELEC CONNECTOR,14 - 20 SAE

CONNECTOR - shroud, 2 pin, male

1шт.

18

700708757

ELEC. TERMINAL PIN,18 - 16 SAE

PIN - type 3, male (16-18 Gauge)

1шт.

19

700708753

REPAIR KIT

KIT - harness repair, 2 pin, male (Includes items 1, 9 and 17)

1шт.

20

700708758

TERMINAL

SOCKET - type 3, female, (16-18 Gauge)

1шт.

21

700706999

REPAIR KIT

KIT - harness repair, 2 socket, female, 18-20 gauge (Includes items 1, 2 and 22)

1шт.

22

245482C1

ELEC CONNECTOR,2 Pin

CONNECTOR - tower, 2 socket, female

1шт.

23

700718590

KIT

- harness repair, 2 socket, female, 16 gauge (Includes items 12, 13 and 22)

1шт.

24

245484C1

ELEC CONNECTOR,3 Pin

CONNECTOR - tower, 3 socket, female

1шт.

25

700718582

KIT

- harness repair, 3 socket, female 16 gauge (Includes items 12, 13 and 24)

1шт.

26

700707001

REPAIR KIT

KIT - harness repair, 3 socket, female, (Includes items 1, 2 and 24)

1шт.
