(4-26) - ELECTRICAL CONTROL BOX ASSEMBLY, WITH MESH WRAP, 700718052 ELECTRICAL CONTROL BOX ASSEMBLY COMPLETE

Запчасти Case IH RS551 (4-26) - ELECTRICAL CONTROL BOX ASSEMBLY, WITH MESH WRAP, 700718052 ELECTRICAL CONTROL BOX ASSEMBLY COMPLETE (06) - ELECTRICAL

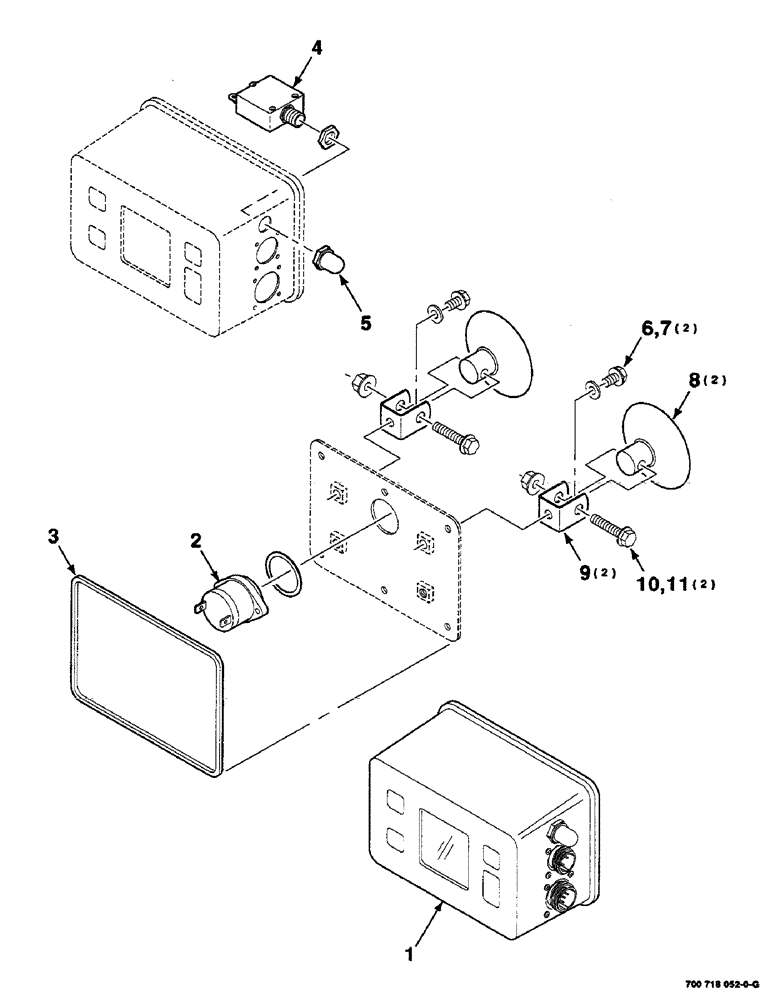

Схема запчастей Case IH RS551 - (4-26) - ELECTRICAL CONTROL BOX ASSEMBLY, WITH MESH WRAP, 700718052 ELECTRICAL CONTROL BOX ASSEMBLY COMPLETE (06) - ELECTRICAL
8
3
6
10
7
9
2
4
1
5
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700718052

CONTROL

BOX ASSEMBLY COMPLETE (With mesh wrap)

1шт.

2

700719004

ALARM

BEEPER

1шт.

3

700719007

GASKET

1шт.

4

700719006

BREAKER

CIRCUIT BREAKER

1шт.

5

700716260

COVER

- fuse

1шт.

6

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

7

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

8

700714802

CUP

- suction

2шт.

9

700132408

MOUNTING PARTS

MOUNTING

2шт.

10

7883358

SCREW,Hex Washer, 5/16" - 18 x 1 1/2"

5/16-18 X 1-1/2 HWHMS

2шт.

11

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

2шт.
