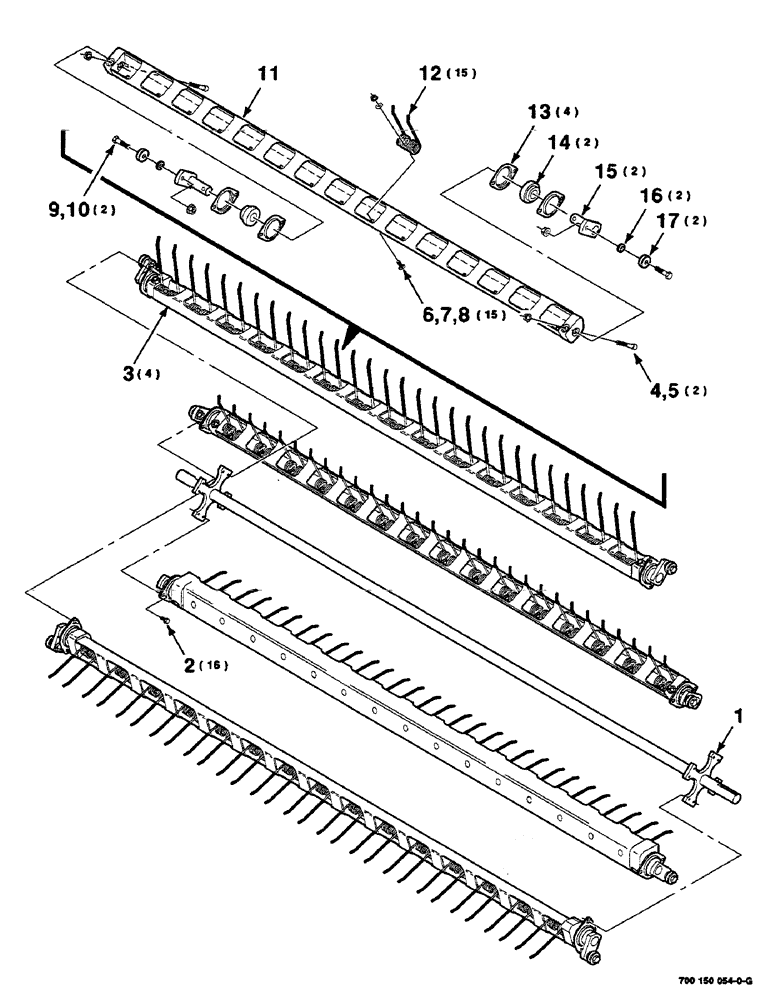

Запчасти Case IH RS551 (3-06) - PICKUP ROTOR ASSEMBLY Pickup

1

700150061

ROTOR

WA

1шт.

2

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

16шт.

3

700150055

BAR

TINEBAR ASSEMBLY (Includes items 4 thru 17)

4шт.

4

61-736

HEX SOC SCREW,7/16"-14 x 2 1/4"

7/16-14 X 2-1/4 HSHCS SPL

2шт.

5

704452

SPRING

7/16-14 HFTLN GR/G

2шт.

6

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

15шт.

7

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

15шт.

8

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

15шт.

9

428-832

BOLT,Hex, 1/2" - 20 x 2", Gr 8

1/2-13 X 2 C GR8

2шт.

10

700707867

NUT

1/2-20 HFTLN GR/G

2шт.

11

700150056

CHANNEL

WA - tine

1шт.

12

700714826

TORSION SPRING,Coiled, 2 Prong, 177mm L

- double

15шт.

13

581469R1

FLANGE,Bearing

4шт.

14

700708095

SPHERICAL BEARING

BEARING

2шт.

15

700135875

CRANK

WA

2шт.

16

700137750

SPACER

2шт.

17

700720050

CAM FOLLOWER

BEARING - cam follower

2шт.
