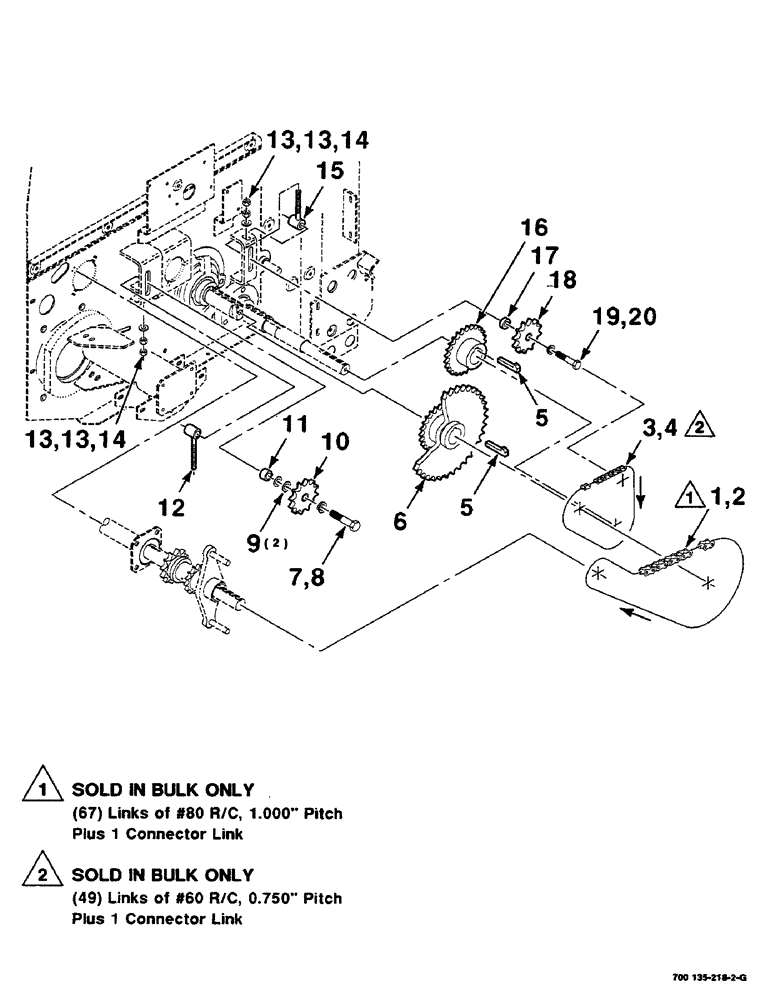

Запчасти Case IH RS551 (2-32) - ROLLER DRIVE ASSEMBLY, LOWER Driveline

1

7086010

CHAIN (CE)

CHAIN - roller, #80 (10 Foot Bulk)

1шт.

2

085712

LINK - connector, #80 R/C

1шт.

3

7086002

CHAIN (AG)

CHAIN - roller, #60 (10 Foot Bulk)

1шт.

4

700710981

LINK

- connector, #60 R/C

1шт.

5

061747

1/2 X 2-1/2 GIB KEY

2шт.

6

700150109

SPROCKET ASSY.

SPROCKET WA - double, 23 and 36 tooth

1шт.

7

7772122

BOLT

3/4-10 X 3-1/2 C

1шт.

8

705111

LOCK WASHER,3/4"

3/4"

1шт.

9

052761

3/4 X 14 GAUGE NRMB

2шт.

10

51200277

SPROCKET ASSY.

SPROCKET - idler, 12 tooth

1шт.

11

6834071

BUSHING

SPACER

1шт.

12

700150105

SPECIAL BOLT

DRAWBOLT WA

1шт.

13

86516876

COVER

1/2-13 H

4шт.

14

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

2шт.

15

700135548

SPECIAL BOLT

DRAWBOLT WA

1шт.

16

700150114

SPROCKET ASSY.

SPROCKET WA - 25 tooth

1шт.

17

700110610

SPACER

1шт.

18

087726

SPROCKET - idler, 15 tooth

1шт.

19

7701683

BOLT,Hex, 5/8" - 11 x 3", Gr 5

5/8-11 X 3 C

1шт.

20

705061

PLUG

5/8"

1шт.
