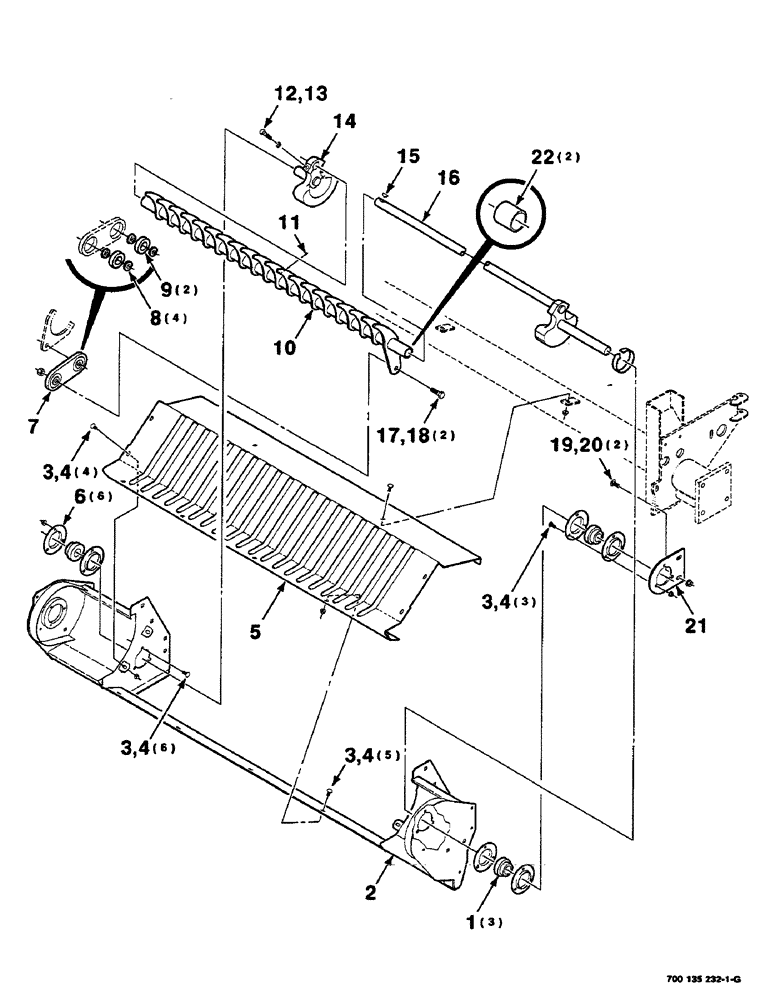

Запчасти Case IH RS551 (2-30) - STUFFER FRAME, AND SUPPORT ASSEMBLIES Driveline

1

700708091

SPHERICAL BEARING,34.93 mm ID x 72 mm OD x 38.89 mm

BEARING - spherical

3шт.

2

700135712

FRAME

WA - stuffer

1шт.

3

700047

BOLT

3/8-16 X 1 RHSNB

18шт.

4

704734

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

18шт.

5

700135710

GRATE

1шт.

6

051417

FLANGE

6шт.

7

700132212

LINK

ASSEMBLY (Includes items 8 and 9)

1шт.

8

700124038

BUSHING,16.27mm ID x 34.92mm OD x 10mm L

- bearing

4шт.

9

050179

BEARING - cylindrical

2шт.

10

700135732

SHAFT ASSY.

STUFFER WA

1шт.

11

077032

1/4-28 ZERK

1шт.

12

703983

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 X 1-3/4 C

1шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

14

700132088

CRANK

WA - idler, right

1шт.

15

061283

1 X 1/4 KEY - Woodruff

1шт.

16

700135729

CRANK

WA - drive, left

1шт.

17

7701949

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 X 2 C

2шт.

18

704924

NUT

5/8-11 HTLN GR/B

2шт.

19

068619

1/2-13 X 1-1/4 RHSNB

2шт.

20

704742

ROD

1/2-13 HFTLN GR/G

2шт.

21

700135946

PLATE

1шт.

22

740514

BUSHING,31.81mm ID x 38.2mm OD x 50.8mm L

- bronze

2шт.
