Запчасти Case IH RS551 (2-26) - STUFFER, AUGER AND DRIVE ASSEMBLIES, LEFT Driveline

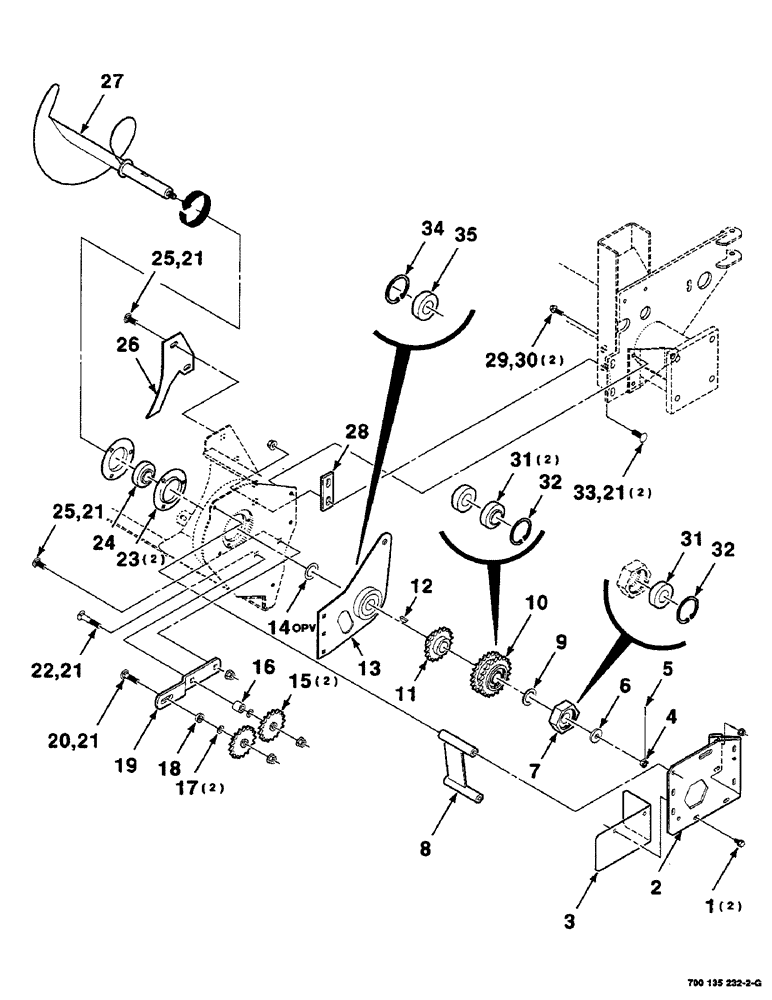

Схема запчастей Case IH RS551 - (2-26) - STUFFER, AUGER AND DRIVE ASSEMBLIES, LEFT Driveline
7
5
1
26
10
21
3
35
31
31
30
21
13
12
27
22
23
19
18
25
21
33
6
11
28
14
29
34
9
4
25
20
21
32
8
32
15
18
24
2
16
21

Артикул

Название

Примечание

Количество

1

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

2шт.

2

700150070

SUPPORT

WA - left

1шт.

3

700135740

SHIELD

WA - left

1шт.

4

74344

NUT

1/2-20 SHN

1шт.

5

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

6

6181994

WASHER

- special

1шт.

7

700150087

HUB

- assembly (Includes items 31 & 32)

1шт.

8

700150079

SUPPORT

WA - left

1шт.

9

52324

BUSHING

1-1/4 X 10 GAUGE NRMB

1шт.

10

700150083

SPROCKET ASSY.

SPROCKET - assembly 22-22 tooth (Includes items 31 & 32)

1шт.

11

700150100

SPROCKET ASSY.

SPROCKET WA - 18 tooth

1шт.

12

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

13

700150092

SUPPORT

- assembly, left (Includes items 34 & 35)

1шт.

14

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 X 18 GAUGE NRMB

1шт.

15

700716888

SPROCKET ASSY.

SPROCKET - idler, 17 tooth

2шт.

16

700150104

SPACER

1шт.

17

95-81100

WASHER,33/64" x 7/8" x .049"

1/2 X 18 GAUGE NRMB

2шт.

18

6582696

SPACER

1шт.

19

700150076

SUPPORT

1шт.

20

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

1/2-13 X 2 RHSNB

1шт.

21

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

6шт.

22

591514R1

CARRIAGE BOLT,1/2" - 13 x 2 3/4", Grade 5

1/2-13 X 2-3/4 RHSNB

1шт.

23

617863R1

FLANGED BEARING

2шт.

24

565672R92

SPHERICAL BEARING,1.2505" ID x 72 mm OD x 1"

BEARING - less collar

1шт.

25

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

2шт.

26

700135748

PLATE

1шт.

27

700150089

AUGER

WA - left

1шт.

28

700135747

PLATE

1шт.

29

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

2шт.

30

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

31

586649R92

BEARING, ROLLER, CYL,31.75mm ID x 62mm OD x 18mm W

- cylindrical

3шт.

32

100-21244

SNAP RING,2.44", Int, #244

Ring, Snap, 2.44", Int, #244

2шт.

33

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 RHSNB

2шт.

34

740415

RING, SNAP

RING - retaining

1шт.

35

587015R92

BEARING, ROLLER, CYL,31.75mm ID x 72mm OD x 19mm W

- cylindrical

1шт.

Выбрано товаров: 35
