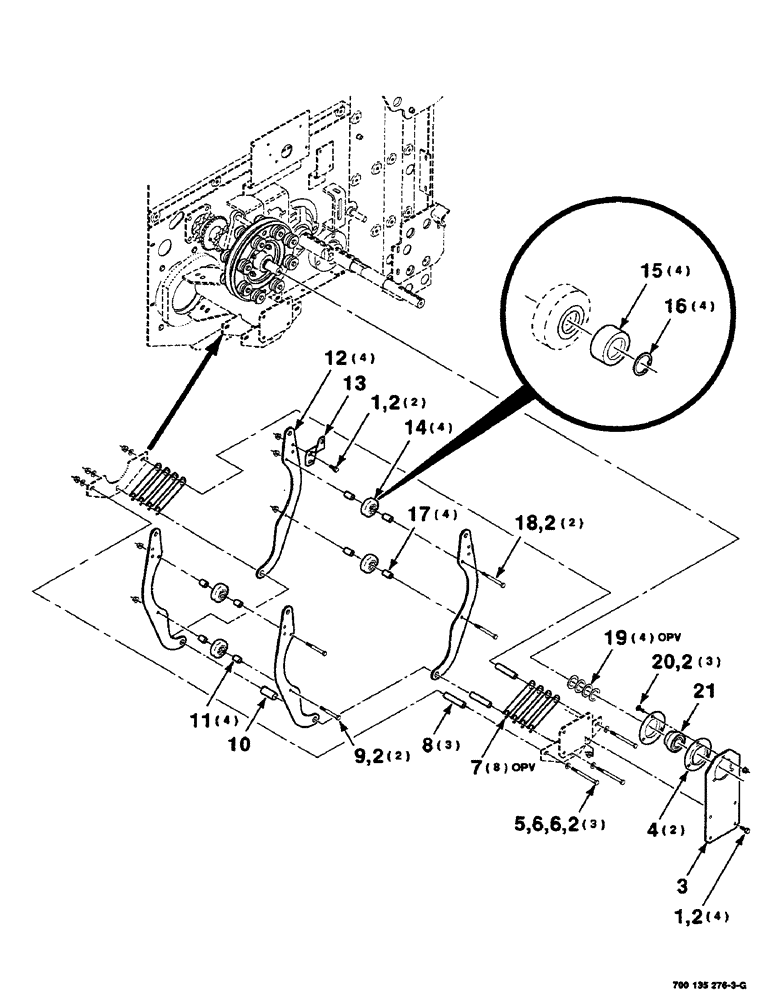

Запчасти Case IH RS551 (2-22) - CLUTCH ARM ASSEMBLY Driveline

1

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

6шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

16шт.

3

700150880

SUPPORT

1шт.

4

617863R1

FLANGED BEARING

2шт.

5

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

3/8-16 X 4-1/2 C

3шт.

6

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

6шт.

7

700116072

SHIM

8шт.

8

700116071

SPACER

3шт.

9

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

2шт.

10

700116069

SPACER

1шт.

11

700116065

SPACER

4шт.

12

700127887

ARM

- clutch

4шт.

13

700151476

SUPPORT

- sensor

1шт.

14

700126815

ROLLER

ASSEMBLY (Includes items 15 and 16)

4шт.

15

D38346

BALL BEARING,10 mm ID x 30 mm OD x 9 mm

BEARING

4шт.

16

100-21118

SNAP RING,1.188", Int, #118

Ring, Snap, 1.188", Int, #118

4шт.

17

700116070

SPACER

4шт.

18

113-252

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

2шт.

19

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 X 14 GAUGE NRMB

4шт.

20

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

3шт.

21

51292

SPHERICAL BEARING,1.25" ID x 72 mm OD x 19 mm

- spherical

1шт.
