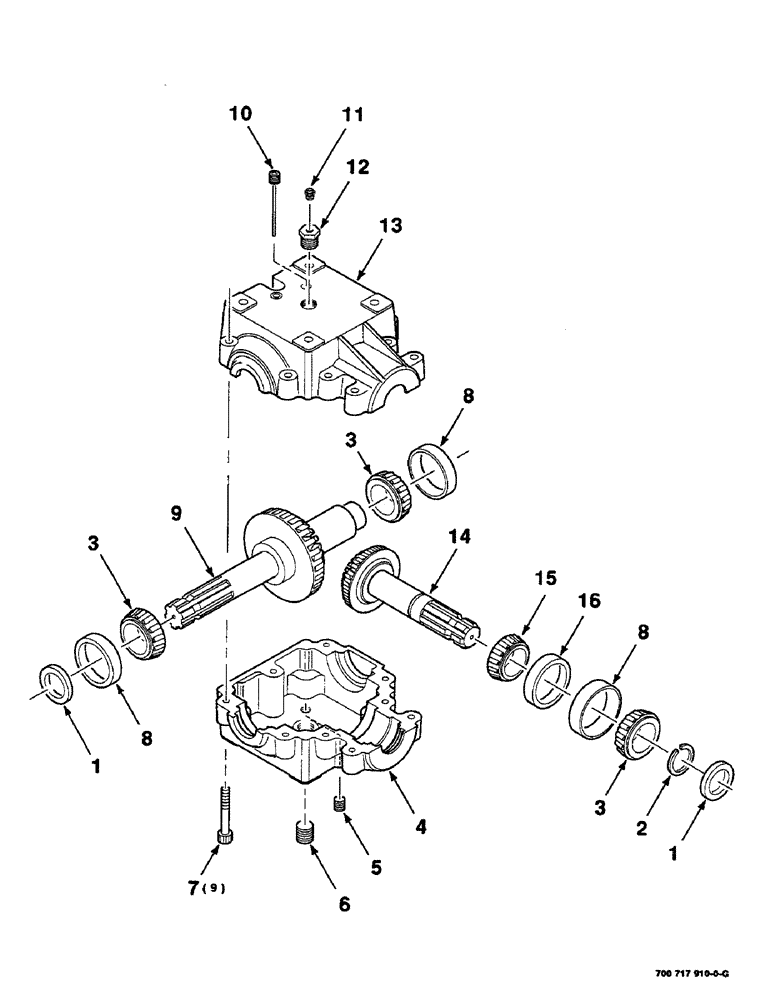

Запчасти Case IH RS551 (2-08) - GEARBOX ASSEMBLY, 700717910 GEARBOX ASSEMBLY COMPLETE Driveline

700717910

GEARBOX ASSY

GEARBOX ASSEMBLY COMPLETE

1шт.

1

700710827

SEAL

2шт.

2

700710828

OIL SEAL

RING - retaining

1шт.

3

20879D

ROLLER BEARING,1.375" ID x 2.77" OD x 0.7813"

BEARING - cone, tapered

3шт.

4

700710824

CASTING

(Thru Holes)

1шт.

5

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

6

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

1/2 NPT SOLID PLUG

1шт.

7

61-636

HEX SOC SCREW,3/8"-16 x 2 1/4"

3/8-16 X 2-1/4 HSHCS

9шт.

8

710350

BRACKET,69.037 mm OD x 15.875 mm

- bearing

3шт.

9

700718137

GEAR SHAFT

CROSS SHAFT AND GEAR ASSEMBLY

1шт.

10

700710819

DIPSTICK

1шт.

11

700710818

VALVE

BREATHER

1шт.

12

444030

REDUCER,1/2"-14 NPTF x 1/8"-27 Fem NPTF

1/2-1/8 NPT REDUCER BUSHING

1шт.

13

700710825

CASTING

(Tapped Holes)

1шт.

14

700718136

GEAR SHAFT

PINION SHAFT AND GEAR ASSEMBLY

1шт.

15

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

BEARING - cone, tapered

1шт.

16

165964R1

BEARING CUP

CUP - bearing

1шт.
