Запчасти Case IH RS551 (9-34) - RIENK KIT, HK50984 RIENK KIT COMPLETE, TO BE ORDERED THROUGH WHOLEGOODS ONLY Decals & Attachments

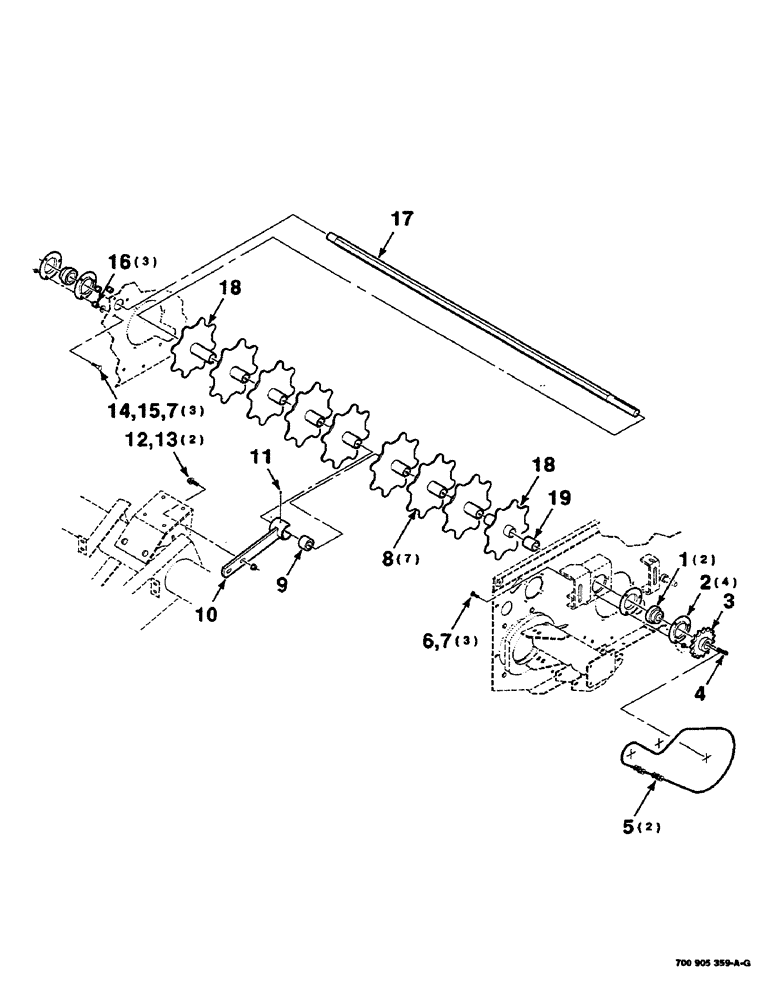

Схема запчастей Case IH RS551 - (9-34) - RIENK KIT, HK50984 RIENK KIT COMPLETE, TO BE ORDERED THROUGH WHOLEGOODS ONLY Decals & Attachments
18
9
8
13
5
7
3
7
12
17
2
6
10
15
14
16
1
19
18
4
11

Артикул

Название

Примечание

Количество

HK50984

RIENK KIT COMPLETE

1шт.

1

51292

SPHERICAL BEARING,1.25" ID x 72 mm OD x 19 mm

- spherical

2шт.

2

617863R1

FLANGED BEARING

4шт.

3

700135180

SPROCKET ASSY.

SPROCKET WA - 15 tooth

1шт.

4

249-1

KEY

- gib, 1/4 x 1-3/4

1шт.

5

241-1718

LINK,25.4mm Pitch

LINK - offset, #80 R/C

2шт.

6

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

3шт.

7

231-4116

NUT,3/8"-16, GB

3/8-16 HTLN GR/B

6шт.

8

700135176

WHEEL

REINK WA

7шт.

9

700712007

NYLON BEARING,32.8 mm ID x 50.8 mm OD x 38 mm

BEARING - nylon

1шт.

10

700151492

SUPPORT

WA

1шт.

11

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

12

8701237

BOLT

1/2-13 X 1-1/2 HFS GR8

2шт.

13

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

2шт.

14

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

3/8-16 X 1-3/4 RHSNB

3шт.

15

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

3шт.

16

700135179

SPACER

3шт.

17

700151477

SHAFT

- hex

1шт.

18

700151528

WHEEL

REINK WA - outer

2шт.

19

700150196

SPACER

1шт.

Выбрано товаров: 20
