Запчасти Case IH RS551 (9-12) - BALE RAMP KIT, HK50921 BALE RAMP KIT COMPLETE, TO BE ORDERED THROUGH WHOLEGOODS ONLY Decals & Attachments

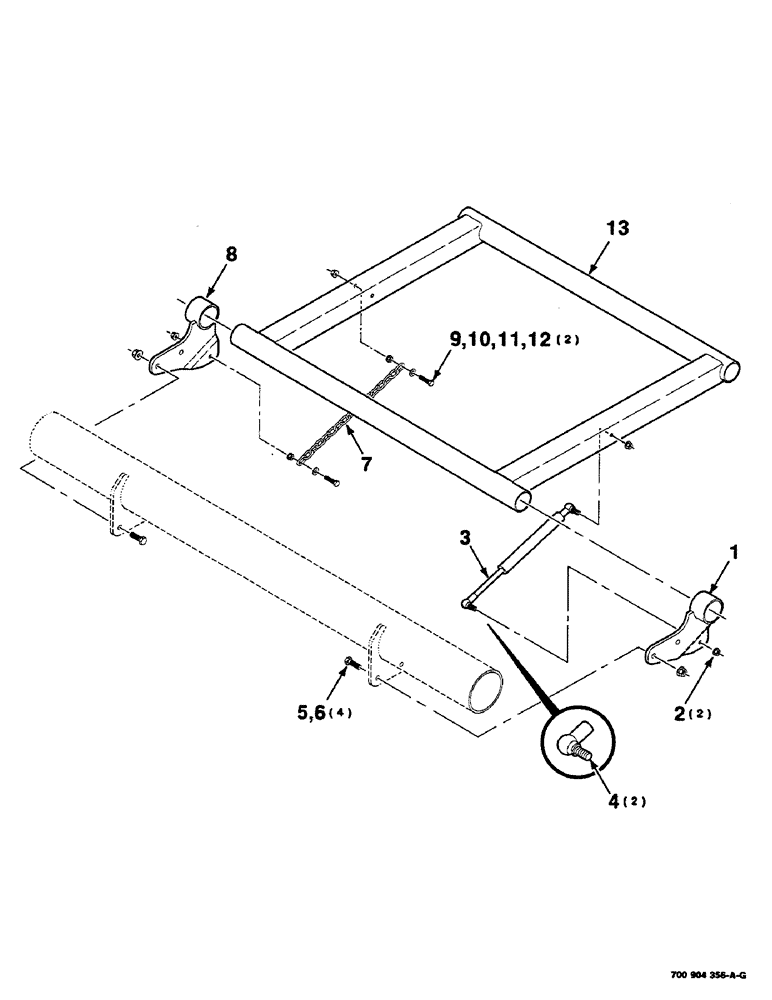

Схема запчастей Case IH RS551 - (9-12) - BALE RAMP KIT, HK50921 BALE RAMP KIT COMPLETE, TO BE ORDERED THROUGH WHOLEGOODS ONLY Decals & Attachments
5
3
9
6
10
11
4
7
2
8
12
13
1

Артикул

Название

Примечание

Количество

HK50921

BALE RAMP KIT COMPLETE

1шт.

1

700135920

SUPPORT

WA - left

1шт.

2

700711876

LOCK NUT

M10 X 1.5 HFTLN CLASS 9

2шт.

3

107898

GAS STRUT

GAS SPRING (Includes item 4)

1шт.

4

700718303

JOINT

14-28 BALL JOINT

2шт.

5

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

6

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

4шт.

7

1662543

CHAIN (AG)

CHAIN

1шт.

8

700135924

SUPPORT

WA - right

1шт.

9

873083

SCREW

3/8-16 X 1-1/2 FTC

2шт.

10

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

11

231-5146

FLANGE NUT,3/8"-16

2шт.

12

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

13

700135926

RAMP

WA

1шт.

Выбрано товаров: 14
