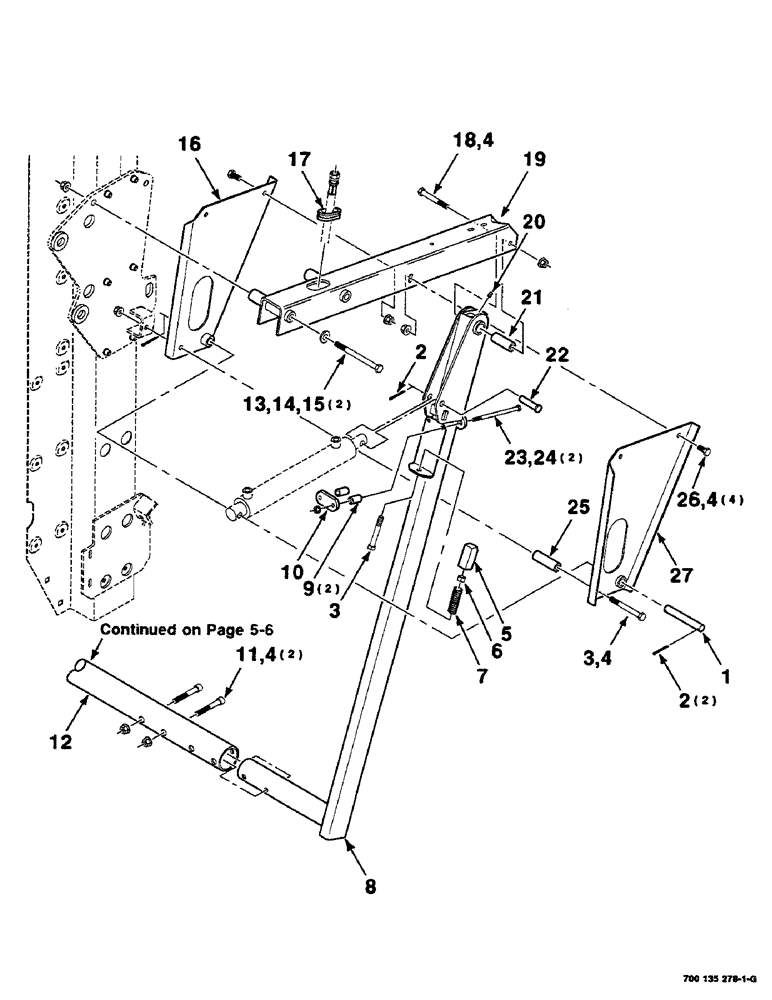

Запчасти Case IH RS551 (5-04) - KICKER ASSEMBLY, LEFT (16) - BALE EJECTOR

1

700132165

PIN

1шт.

2

432-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

3шт.

3

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

1/2-13 X 4-1/2 C

2шт.

4

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

8шт.

5

700135979

LATCH

1шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

7

700716851

SPRING

- compression

1шт.

8

700150833

STRUT

WA - left

1шт.

9

700135978

SPACER

2шт.

10

700135976

PLATE

1шт.

11

61-35052

HEX SOC SCREW,1/2"-13 x 3 1/4"

1/2-13 X 3-1/4 HSHCS, special

2шт.

12

700150216

TUBE,73.02 mm OD, 1530 mm Length

- kicker

1шт.

13

413-10120

BOLT,Hex, 5/8" - 11 x 7-1/2", Gr 5

5/8-11 X 7-1/2 C

2шт.

14

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

2шт.

15

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

2шт.

16

700150831

MOUNTING PARTS

CHANNEL WA - right

1шт.

17

8027427

GROMMET

1шт.

18

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

1шт.

19

700150218

CHANNEL

WA - left

1шт.

20

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

21

700132166

SPACER

1шт.

22

700708068

CLEVIS PIN,15.77mm OD x 68.66mm L

5/8 X 2-1/2 CLEVIS PIN

1шт.

23

413-696

BOLT,Hex, 3/8" - 16 x 6", Gr 5

3/8-16 X 6 C

2шт.

24

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

25

140186

ASSEMBLING ROD

1шт.

26

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

27

700150829

MOUNTING PARTS

CHANNEL WA - left

1шт.
