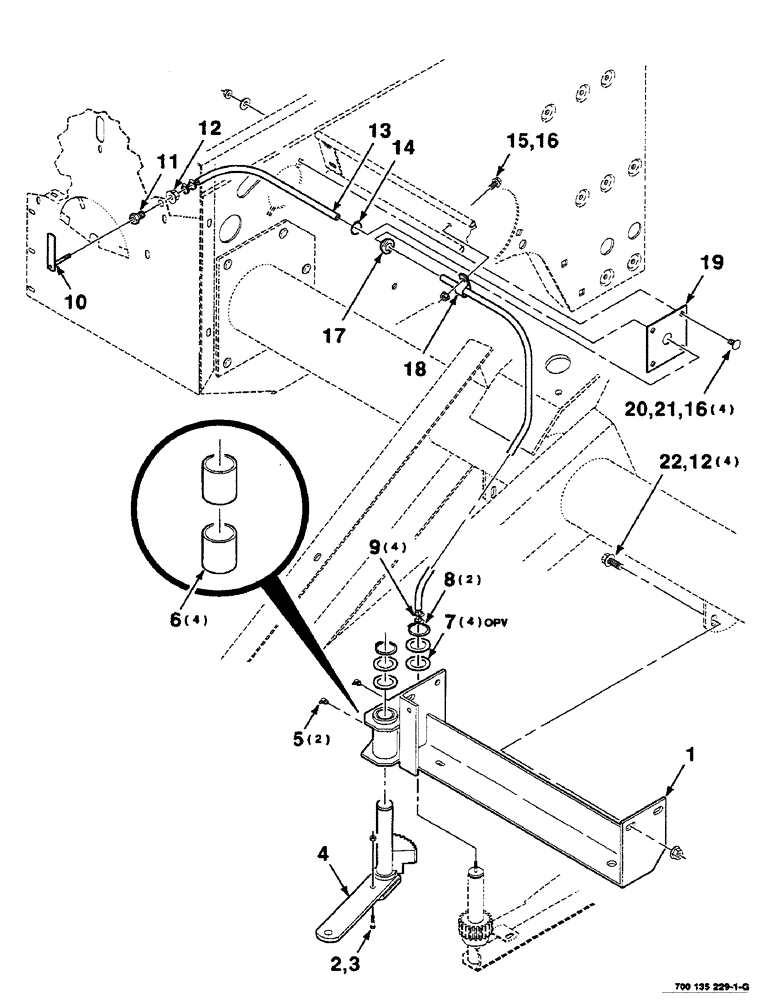

Запчасти Case IH RS551 (6-18) - TWINE THREADER ASSEMBLY (14) - BALE CHAMBER

1

700135651

SUPPORT

WA - twine arm (Includes item 6)

1шт.

2

7701717

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16-18 X 1-1/2 C

1шт.

3

704163

LOCK NUT

5/16-18 HTLN GR/B

1шт.

4

700135662

SHAFT

WA

1шт.

5

077057

1/4-28 X 90 DEGREE ZERK

2шт.

6

740514

BUSHING,31.81mm ID x 38.2mm OD x 50.8mm L

BEARING - bronze

4шт.

7

052266

1-1/4 X 14 GAUGE NRMB

4шт.

8

052613

RING - retaining, external

2шт.

9

7721020

HOSE CLAMP

CLAMP - hose

4шт.

10

700135805

INDICATOR

WA

1шт.

11

700135804

BOLT

- special

1шт.

12

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

5шт.

13

700716275

HYDRAULIC HOSE,0.25" ID x 49.21", SAE 100R2 or SAE 100R16, SAE J517

HOSE

1шт.

14

740159

RING, SNAP

RING - retaining

1шт.

15

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 X 3/4 HWHMS

1шт.

16

704247

NUT

3/8-16 HFSLN

5шт.

17

700107977

GUIDE

- twine

1шт.

18

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

19

700135773

PLATE

1шт.

20

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 X 3/4 RHSNB

4шт.

21

700702916

WASHER

3/8 HARDENED WIDE PLAIN WASHER

4шт.

22

700710984

SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC

1/2-13 X 1-1/4 HFS GR8

4шт.
