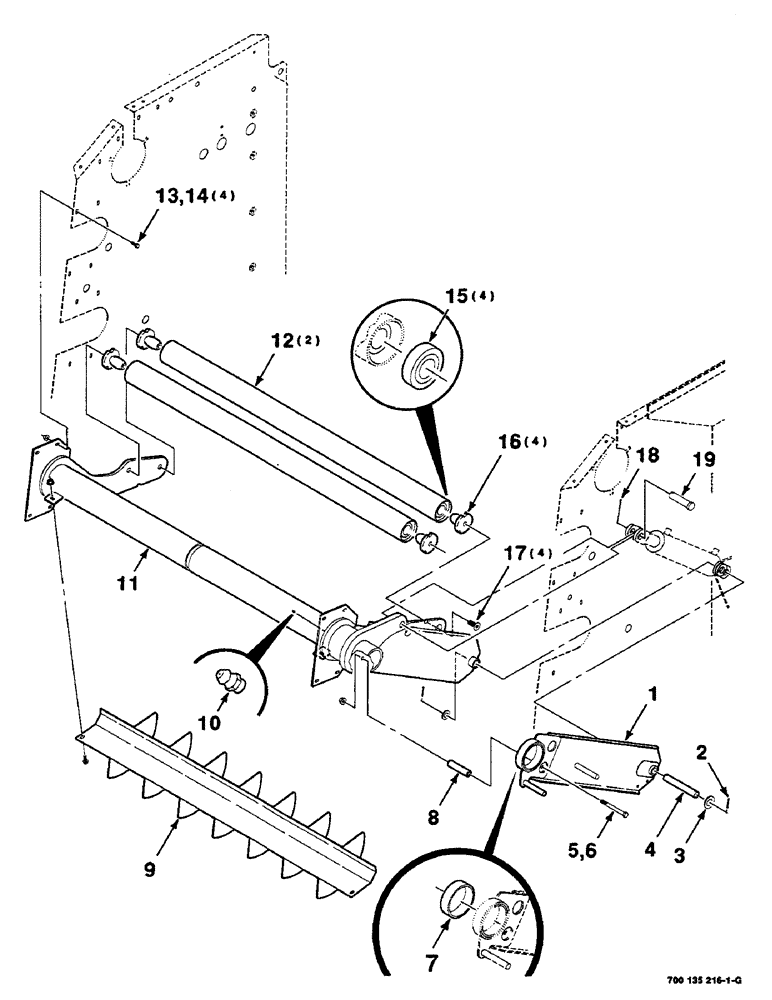

Запчасти Case IH RS551 (6-12) - BELT TENSIONING ROLLER ASSEMBLY (14) - BALE CHAMBER

1

700135537

SUPPORT

WA - outer, upper (Includes item 7)

1шт.

2

062448

3/16 X 1-3/4 COTTER PIN

1шт.

3

705574

WASHER,1 1/8" x 2" x .156", HDN

1шт.

4

700135516

PIN

1шт.

5

7701279

BOLT

1/2-13 X 5 C

1шт.

6

704742

ROD

1/2-13 HFTLN GR/G

1шт.

7

700716064

BUSHING

- bronze

1шт.

8

700135518

TUBE,0.562" ID, 25.4 mm OD, 102 mm Length

1шт.

9

700135519

GUIDE

WA - belt

1шт.

10

077016

1/4-28 ZERK

1шт.

11

700135700

ARM

WA - upper

1шт.

12

700124615

ROLLER

ASSEMBLY (Includes item 15)

2шт.

13

7883382

BOLT,Hex, 3/8" - 16 x 1", Gr 120M

3/8-16 X 1 HWHMS

4шт.

14

704734

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

4шт.

15

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

- cylindrical

4шт.

16

700100927

HUB

4шт.

17

700707981

SCREW,FLAT, 3/4" - 10 x 1-3/4"

3/4-10 X 1-3/4 HSFCHCS

4шт.

18

062299

1/4 X 1-1/2 COTTER PIN

1шт.

19

700710292

PIN

1 CLEVIS PIN - special

1шт.
