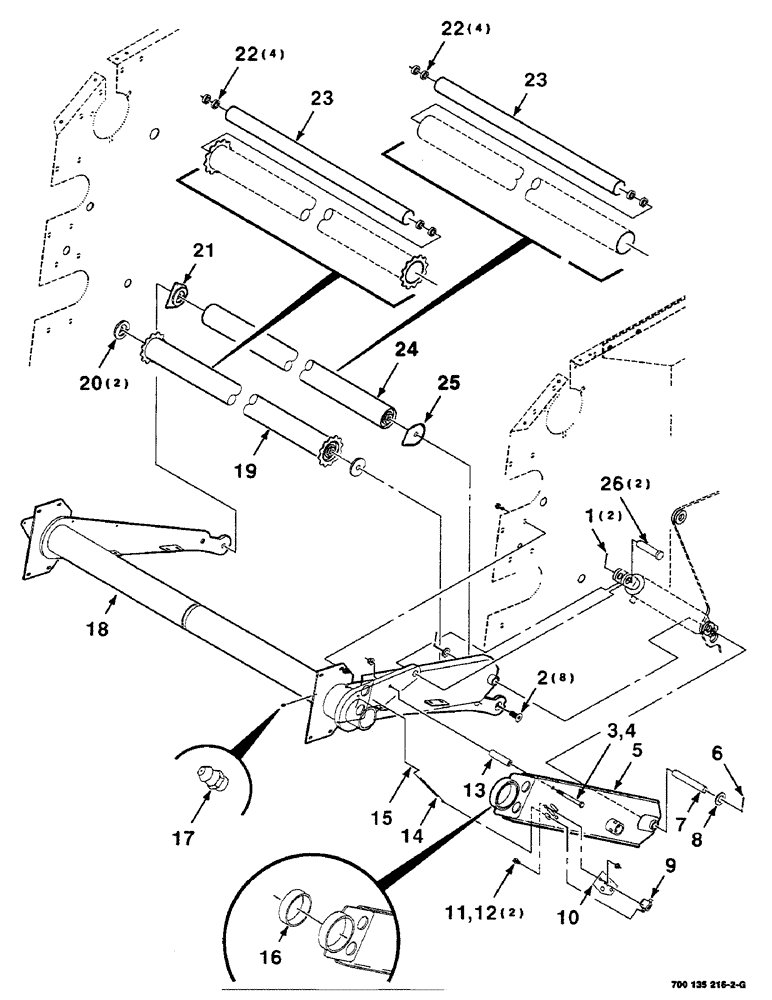

Запчасти Case IH RS551 (6-10) - BALE TENSIONING ROLLER ASSEMBLY (14) - BALE CHAMBER

1

062299

1/4 X 1-1/2 COTTER PIN

2шт.

2

700707981

SCREW,FLAT, 3/4" - 10 x 1-3/4"

3/4-10 X 1-3/4 HSFCHCS

8шт.

3

7701279

BOLT

1/2-13 X 5 C

1шт.

4

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

1шт.

5

700135697

CHANNEL

SUPPORT WA - outer, lower (Includes item 16)

1шт.

6

062448

3/16 X 1-3/4 COTTER PIN

1шт.

7

700135516

PIN

1шт.

8

705574

WASHER,1 1/8" x 2" x .156", HDN

1шт.

9

700707437

COUNTER

- bale

1шт.

10

700150222

PLATE

1шт.

11

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 X 3/4 HWHMS

2шт.

12

704734

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

13

700135518

TUBE,0.562" ID, 25.4 mm OD, 102 mm Length

1шт.

14

700716222

SPRING

- extension

1шт.

15

062125

1/8 X 1-1/2 COTTER PIN

1шт.

16

700716063

BUSHING

- bronze

1шт.

17

077016

1/4-28 ZERK

1шт.

18

700135688

ARM

WA - lower

1шт.

19

700150042

ROLLER

ASSEMBLY (Includes items 22 & 23)

1шт.

20

700150040

WASHER

WA - special

2шт.

21

700150141

GUIDE

WA

1шт.

22

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

- cylindrical

8шт.

23

700150048

SHAFT

2шт.

24

700150043

ROLLER

ASSEMBLY (Includes items 22 & 23)

1шт.

25

700150139

GUIDE

WA - L

1шт.

26

700710292

PIN

2шт.
