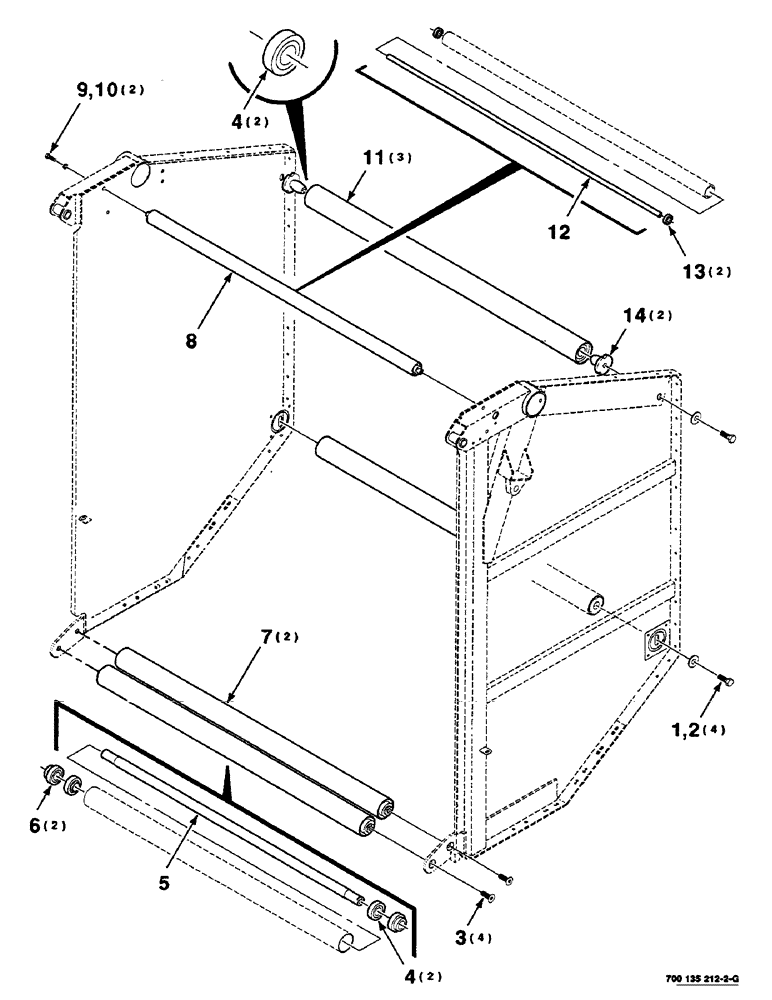

Запчасти Case IH RS551 (6-08) - TAILGATE ROLLER ASSEMBLIES (14) - BALE CHAMBER

1

7702160

BOLT,Hex 3/4" - 10 x 2", Gr 5

3/4-10 X 2 C

4шт.

2

705566

WASHER

3/4 HARDENED PLAIN WASHER

4шт.

3

700707981

SCREW,FLAT, 3/4" - 10 x 1-3/4"

3/4-10 X 1-3/4 HSFCHCS SPL

4шт.

4

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

- cylindrical

4шт.

5

700130863

SHAFT

1шт.

6

F82059

BEARING ASSY,38.1mm ID x 80mm OD x 22mm W

BEARING - cylindrical

2шт.

7

700130862

ROLLER

ASSEMBLY (Includes items 4, 5 & 6)

2шт.

8

700135478

ROLLER

ASSEMBLY (Includes items 12 & 13)

1шт.

9

701235

BOLT,1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 C

2шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

11

700124612

ROLLER

ASM (Includes item 4)

3шт.

12

700135480

SHAFT

1шт.

13

050443

BEARING - cylindrical

2шт.

14

700100927

HUB

2шт.
