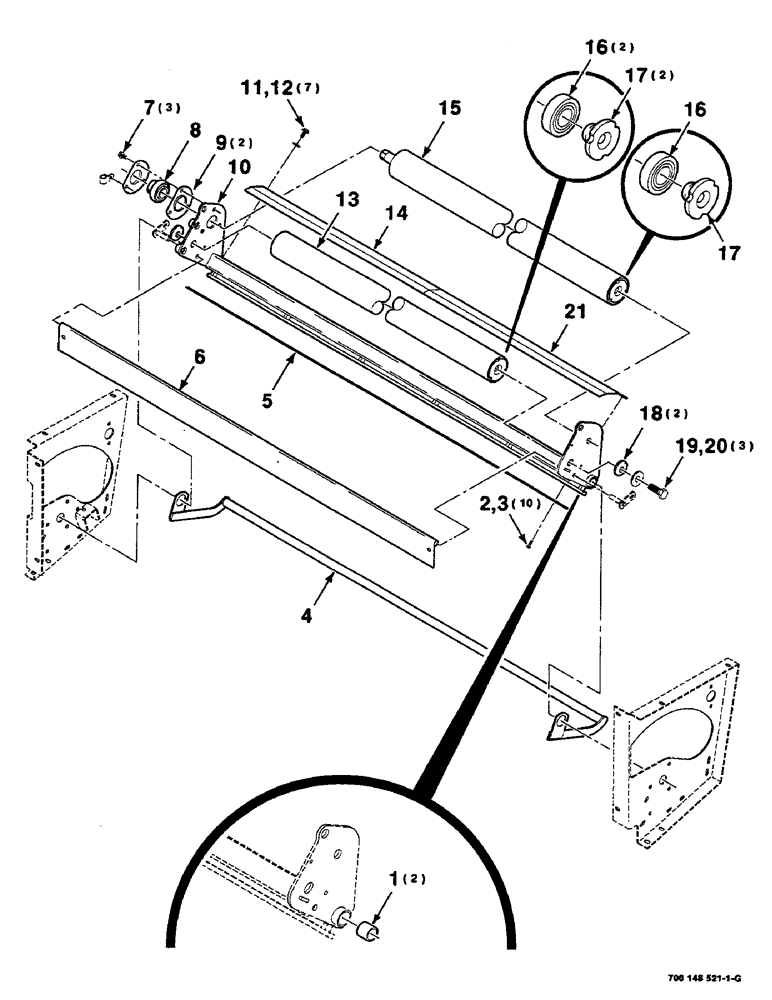

Запчасти Case IH RS551 (7-42) - MESH WRAP ROLLER ASSEMBLIES (12) - MAIN FRAME

1

7852254

BRONZE BUSHING

BUSHING - bronze

2шт.

2

51200165

SCREW,Hex, 1/4"-20 x 1", G5

1/4-20 X 1 C

10шт.

3

1703354

NUT

1/4-20 HFTLN GR/G

10шт.

4

700148745

ARM

WA

1шт.

5

700717216

KNIFE

1шт.

6

700148741

PANEL

1шт.

7

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

3шт.

8

619737R91

BEARING ASSY,31.76mm ID x 62mm OD x 18mm W

- spherical

1шт.

9

405696

FLANGE

- special

2шт.

10

700148727

FRAME

WA (Includes item 1)

1шт.

11

281-34912

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 X 3/4 HWHTCTS

7шт.

12

496-81010

WASHER

3/8 HARDENED WIDE PLAIN WASHER

7шт.

13

700148738

ROLLER

ASSEMBLY - plated (Includes items 16 and 17)

1шт.

14

700152039

SHIELD

- right

1шт.

15

700148739

ROLLER

ASSEMBLY - rubber (Includes items 16 and 17)

1шт.

16

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

- cylindrical

3шт.

17

700100927

HUB

3шт.

18

700148648

WASHER

- adjustment

2шт.

19

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

3шт.

20

700711166

WASHER

3/4 HARDENED WIDE PLAIN WASHER

3шт.

21

700152038

SHIELD

- left

1шт.
