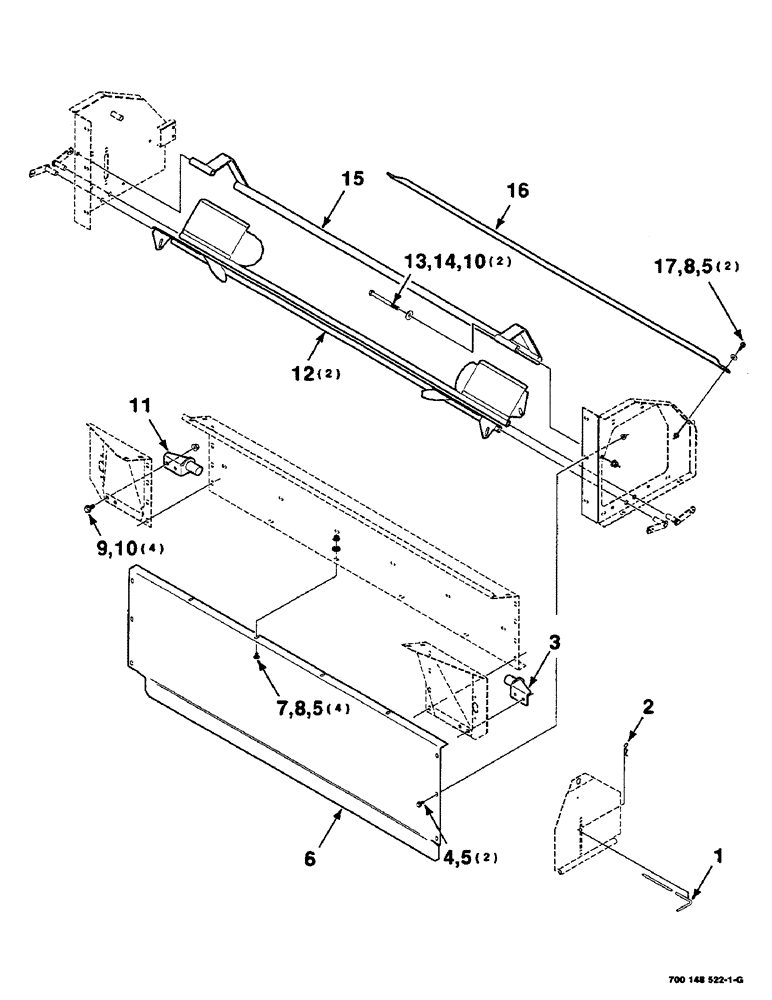

Запчасти Case IH RS551 (7-40) - MESH WRAP ROLLER SUPPORT ASSEMBLY (12) - MAIN FRAME

1

700148764

ROD

1шт.

2

T54573

PIN

.120 WIRE HAIR PIN COTTER

1шт.

3

700148602

PIVOT

WA - L

1шт.

4

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

2шт.

5

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

8шт.

6

700148758

PANEL

1шт.

7

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

4шт.

8

496-81010

WASHER

3/8 HARDENED WIDE PLAIN WASHER

6шт.

9

360-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2-13 X 1 HFS GR8

4шт.

10

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

6шт.

11

700148603

PIVOT

WA - R

1шт.

12

700148760

SUPPORT

WA

2шт.

13

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

.5 X 5.5 UNC GR5 YZD

2шт.

14

700711557

WASHER

1/2 HARDENED WIDE PLAIN WASHER

2шт.

15

700148762

ARM

WA

1шт.

16

700148784

SHAFT

PIPE

1шт.

17

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

2шт.
