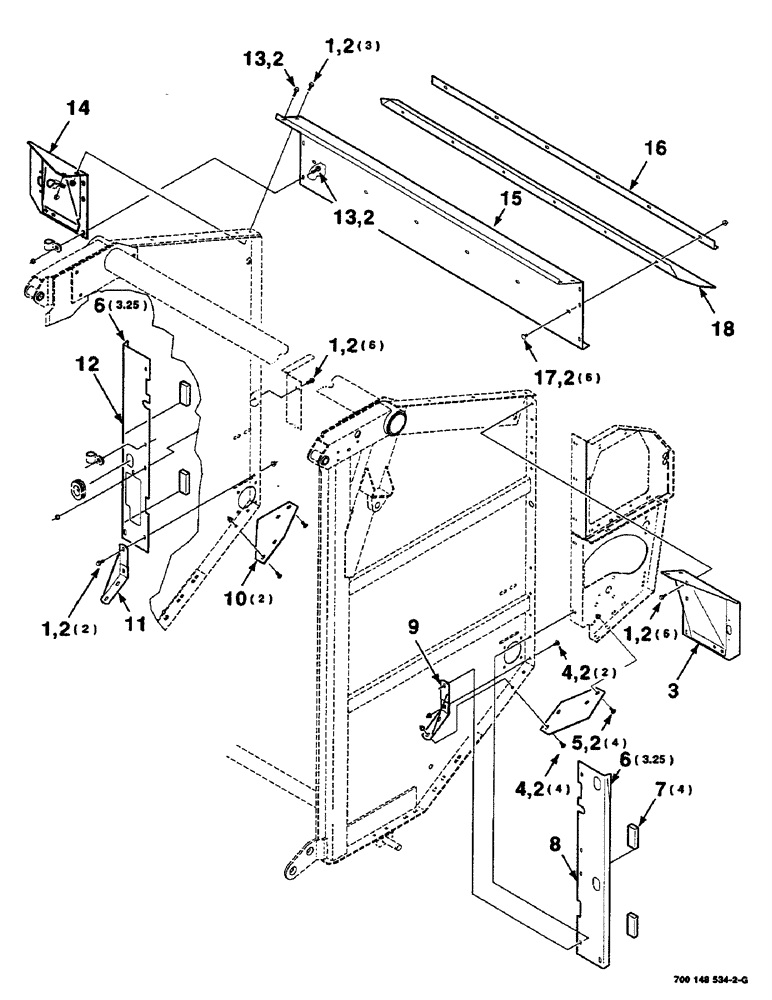

Запчасти Case IH RS551 (7-36) - TAILGATE SHIELDS, WITH MESH WRAP (12) - MAIN FRAME

1

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

17шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

35шт.

3

700148671

SUPPORT

WA - L

1шт.

4

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

6шт.

5

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

6

700717353

TAPE

- 3M adhesive (Ft)

6.5шт.

7

700717354

PAD

- foam rubber

4шт.

8

700148773

ANGLE

- L

1шт.

9

700151518

SUPPORT

WA - L

1шт.

10

700148667

SUPPORT

2шт.

11

700151519

SUPPORT

WA - R

1шт.

12

700148774

ANGLE

- R

1шт.

13

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

2шт.

14

700148672

SUPPORT

WA - R

1шт.

15

700148814

SUPPORT

- upper

1шт.

16

700148790

ANGLE

1шт.

17

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

6шт.

18

700717257

SHIELD

- rubber

1шт.
