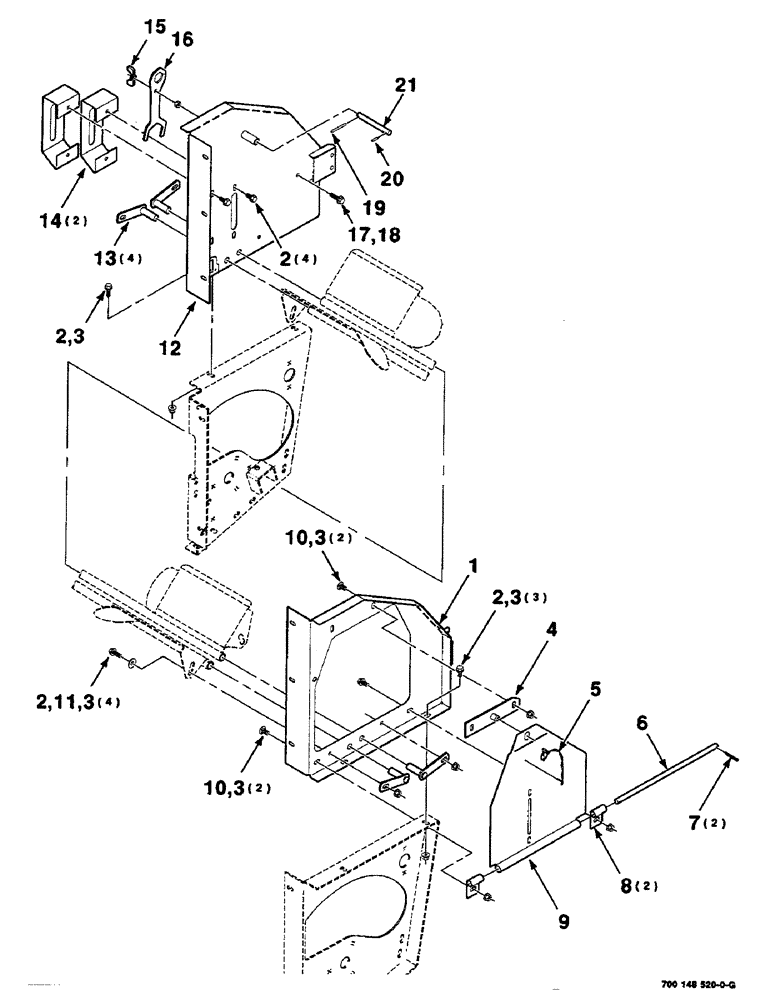

Запчасти Case IH RS551 (7-32) - MESH WRAP FRAME ASSEMBLY, UPPER (12) - MAIN FRAME

1

700148721

PANEL

WA - light, upper

1шт.

2

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

12шт.

3

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

12шт.

4

700148570

PIN

WA

1шт.

5

863415

PIN

KLIK PIN

1шт.

6

700148576

PIN

1шт.

7

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

8

700148568

HINGE

2шт.

9

700148567

DOOR

1шт.

10

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

4шт.

11

496-81010

WASHER

3/8 HARDENED WIDE PLAIN WASHER

4шт.

12

700148724

PANEL

WA - right, upper

1шт.

13

700148564

BAR

WA

4шт.

14

700148573

STOP

WA

2шт.

15

129-410

WING NUT,3/8"-16

3/8-16 WING NUT GR2

1шт.

16

700135666

SPECIAL WRENCH

WRENCH

1шт.

17

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

1шт.

18

425-106

NUT,3/8"-16, Cl 5

1шт.

19

438-11232

LOCK PIN,3/16" x 2", Slotted

Pin, 3/16" x 2", Slotted

1шт.

20

38-31212

PIN,3/16" x 3/4", Coiled

1шт.

21

700148575

PIN

1шт.
