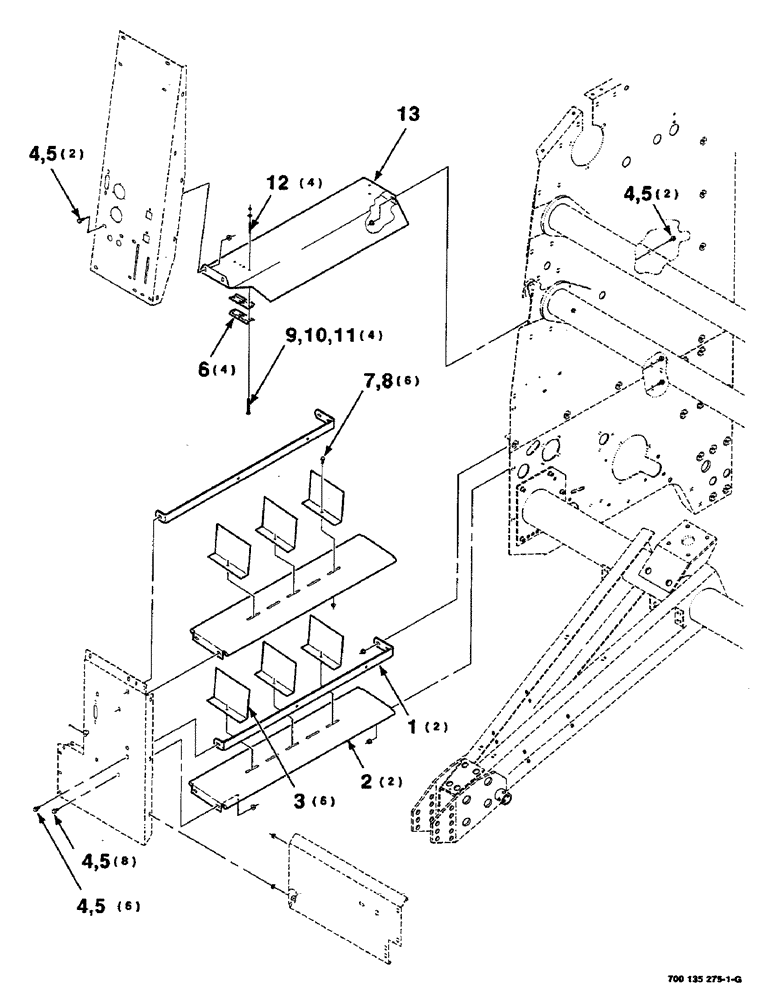

Запчасти Case IH RS551 (7-28) - TWINE BOX ASSEMBLY (12) - MAIN FRAME

1

700135612

GUARD

- twine

2шт.

2

700135596

SUPPORT

- twine

2шт.

3

6868459

DIVIDER

6шт.

4

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

18шт.

5

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

18шт.

6

6549869

SUPPORT

BRACKET - tension

4шт.

7

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

6шт.

8

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

6шт.

9

413-444

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

1/4-20 X 2-3/4 C

4шт.

10

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

4шт.

11

232-4114

LOCK NUT,1/4"-20, GC

1/4-20 HTLN GR B

4шт.

12

700707677

SPRING

- compression

4шт.

13

700135597

SUPPORT

WA - upper

1шт.
