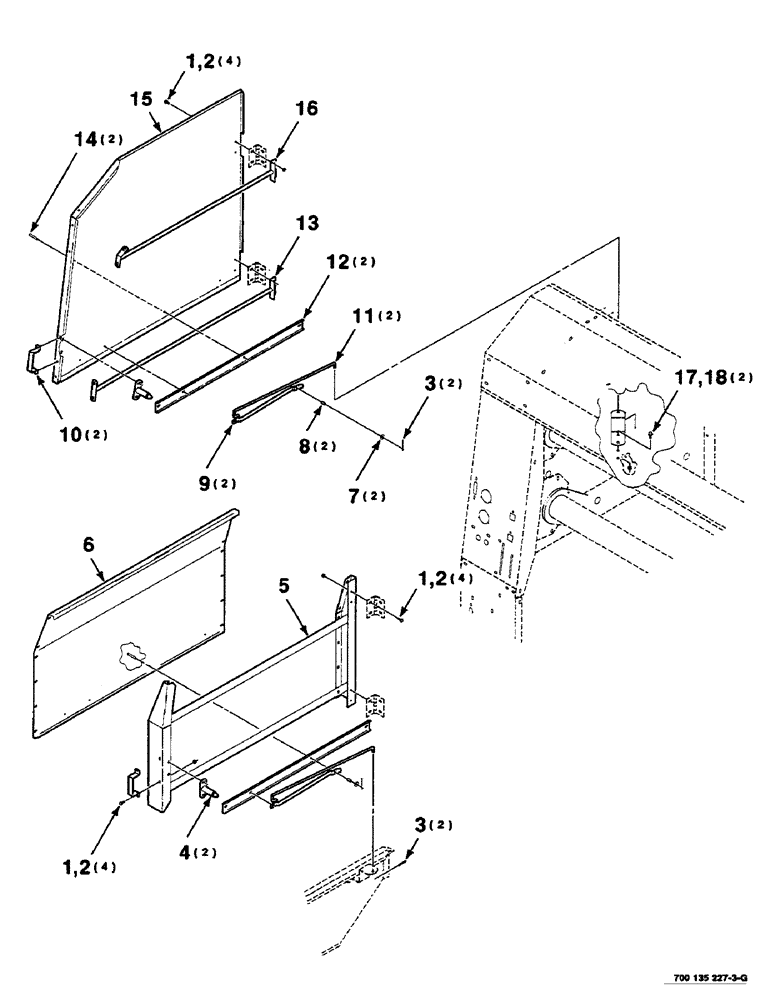

Запчасти Case IH RS551 (7-24) - SHIELD, LATCH AND SUPPORT ASSEMBLIES, RIGHT (12) - MAIN FRAME

1

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 X 3/4 HWHMS

12шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5/16-18 HFSLN

12шт.

3

062075

1/8 X 3/4 COTTER PIN

4шт.

4

700135648

PIN

WA

2шт.

5

700150817

SHIELD

FRAME WA - right, shield (With reflector decal)

1шт.

6

700150816

SHIELD

- lower, right (Includes decals)

1шт.

7

700709602

WASHER,5/16"

5/16 WIDE PLAIN WASHER

2шт.

8

754606

SPRING

- compression

2шт.

9

700117061

LATCH

2шт.

10

700135650

HANDLE

2шт.

11

700117067

SUPPORT

2шт.

12

700132503

CHANNEL

2шт.

13

700135646

SUPPORT

WA - lower, right

1шт.

14

763565

PIN

5/16 X 2 CLEVIS PIN

2шт.

15

700135638

SHIELD

- upper, right

1шт.

16

700135641

SUPPORT

WA - upper, right

1шт.

17

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 X 3/4 HWHMS

2шт.

18

704734

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.
