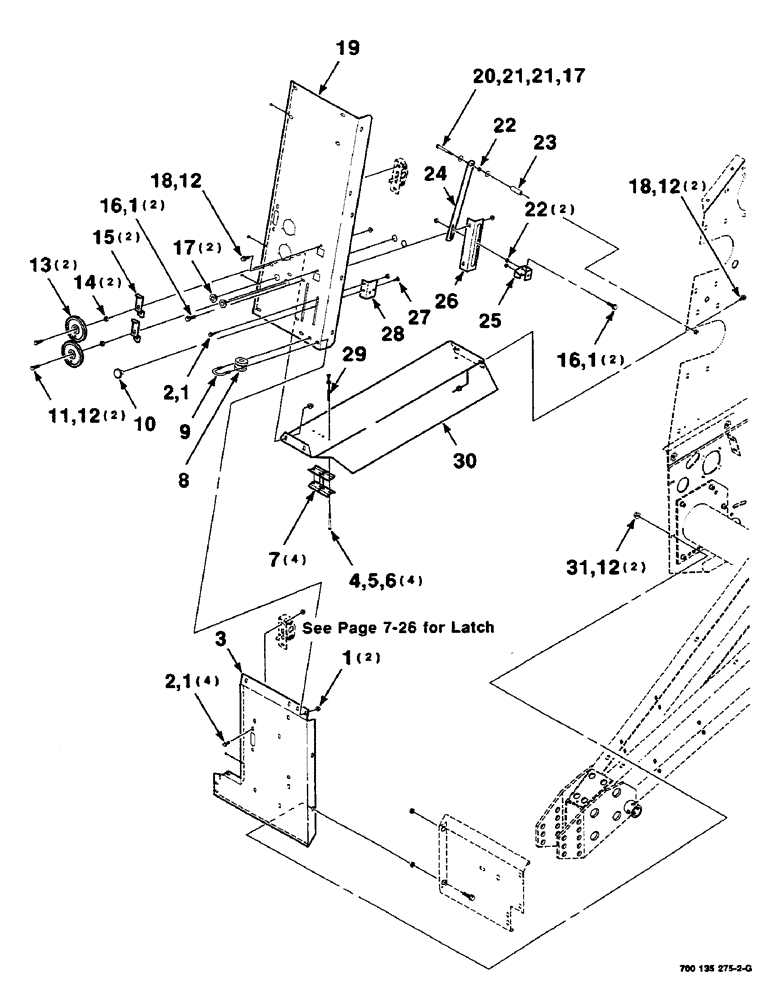

Запчасти Case IH RS451 (7-20) - LATCH SUPPORT AND BALE INDICATOR ASSEMBLIES, RIGHT (12) - MAIN FRAME

1

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

11шт.

2

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

5шт.

3

700150804

SHIELD

- lower, right (Includes decal)

1шт.

4

413-444

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

1/4-20 X 2-3/4 C

4шт.

5

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

4шт.

6

232-4114

LOCK NUT,1/4"-20, GC

1/4-20 HTLN GR B

4шт.

7

6549869

SUPPORT

BRACKET - tension

4шт.

8

7745003

GUIDE

1шт.

9

51200861

U-BOLT

1шт.

10

700707234

BUTTON

KNOB

1шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

12

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

7шт.

13

700714888

PULLEY

2шт.

14

700116106

SPACER

2шт.

15

700135802

SUPPORT

GUIDE

2шт.

16

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

4шт.

17

700107977

GUIDE

- twine

3шт.

18

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

3шт.

19

700150807

SHIELD

- upper, right (Includes decals)

1шт.

20

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

1шт.

21

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

2шт.

22

700115973

SPACER

3шт.

23

700132481

SPACER

1шт.

24

700135593

LINK

1шт.

25

700135953

INDICATOR

1шт.

26

700132479

ANGLE

1шт.

27

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

1шт.

28

700150800

SUPPORT

- switch

1шт.

29

700707677

SPRING

- compression

1шт.

30

700135597

SUPPORT

WA - upper

1шт.

31

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

2шт.
