(7-14) - SHIELD SUPPORT AND HINGE ASSEMBLIES, LEFT

Запчасти Case IH RS451 (7-14) - SHIELD SUPPORT AND HINGE ASSEMBLIES, LEFT (12) - MAIN FRAME

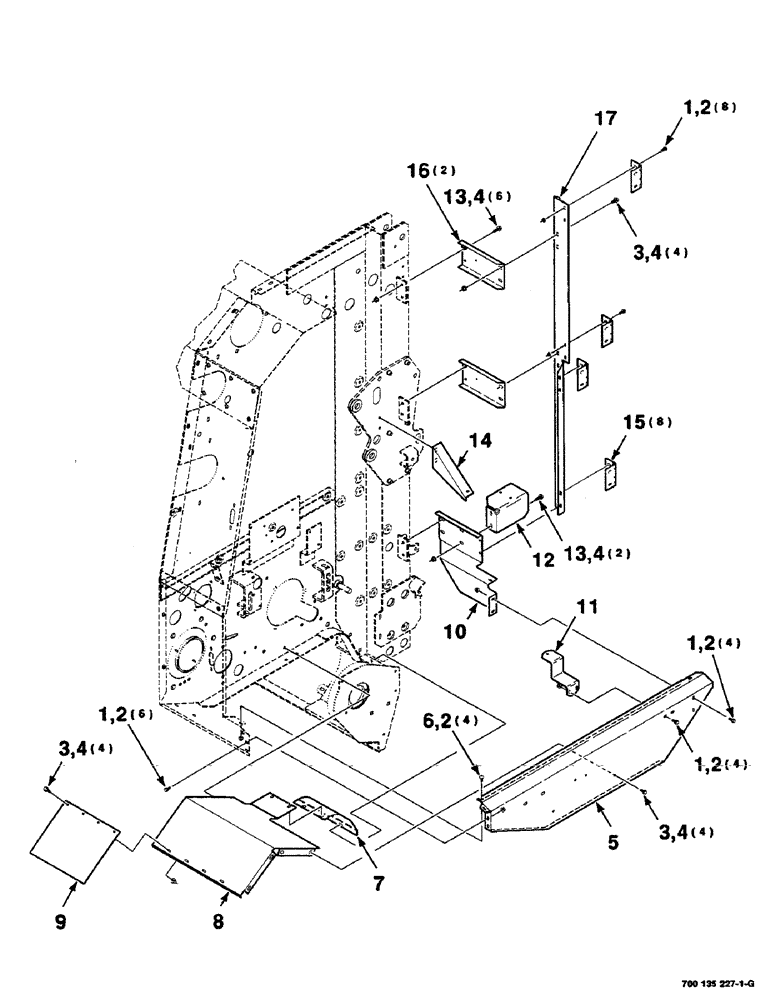

Схема запчастей Case IH RS451 - (7-14) - SHIELD SUPPORT AND HINGE ASSEMBLIES, LEFT (12) - MAIN FRAME
3
4
5
7
2
6
4
4
4
8
13
2
11
2
1
2
17
13
9
12
16
4
2
1
1
10
3
3
1
14
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

22шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

26шт.

3

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

12шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

20шт.

5

700135679

SHIELD

- left

1шт.

6

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5, Full Thd

4шт.

7

700150883

SHIELD

- lower, left

1шт.

8

700150824

SHIELD

- left

1шт.

9

700718401

SHIELD

- rubber

1шт.

10

700135682

SUPPORT

- left

1шт.

11

700135634

SUPPORT

1шт.

12

700132505

SUPPORT

- valve, mount

1шт.

13

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

8шт.

14

700135684

SUPPORT

- left

1шт.

15

700707701

HINGE

- butt

8шт.

16

700135628

SUPPORT

2шт.

17

700150220

SUPPORT

- left

1шт.
