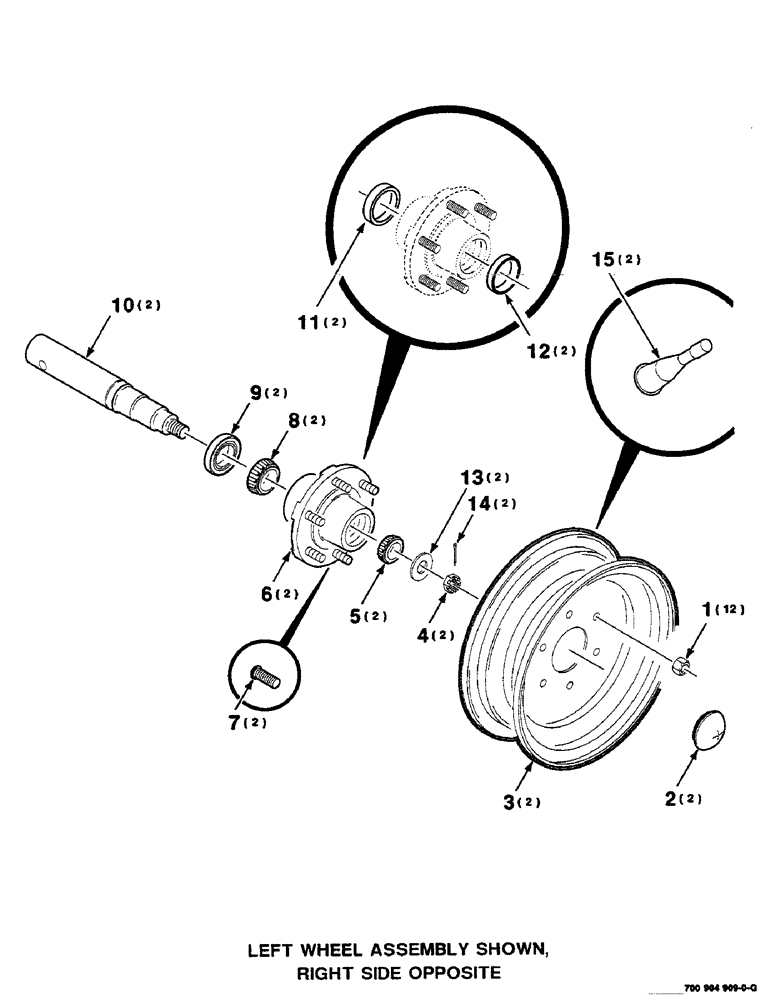

Запчасти Case IH RS451 (7-10) - WHEEL, HUB AND AXLE ASSEMBLY, 31 X 13.5 X 15 INCH (12) - MAIN FRAME

1

G49041

WHEEL NUT

9/16-18 WHEEL NUT

12шт.

2

518842R1

CAP

HUB - cap

2шт.

3

700707982

RIM

WHEEL

2шт.

4

425-1312

SLOTTED NUT,3/4"-16, G5

3/4-16 SHN GR 2

2шт.

5

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING - cone, outer

2шт.

6

700709830

HUB

(Includes items 7, 11 and 12)

2шт.

7

826370

BOLT,Ribbed Nk, 9/16" - 18 x 2.12"

9/16-18 X 2.12 BOLT, stud

2шт.

8

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

BEARING - cone, inner

2шт.

9

844050

SEAL

2шт.

10

700135365

SPINDLE

2шт.

11

663558R1

BEARING CUP

CUP - inner

2шт.

12

651817R1

BEARING CUP

CUP - outer

2шт.

13

26971

WASHER

7/8 HARDENED PLAIN WASHER

2шт.

14

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

2шт.

15

A38261

VALVE

STEM

2шт.
