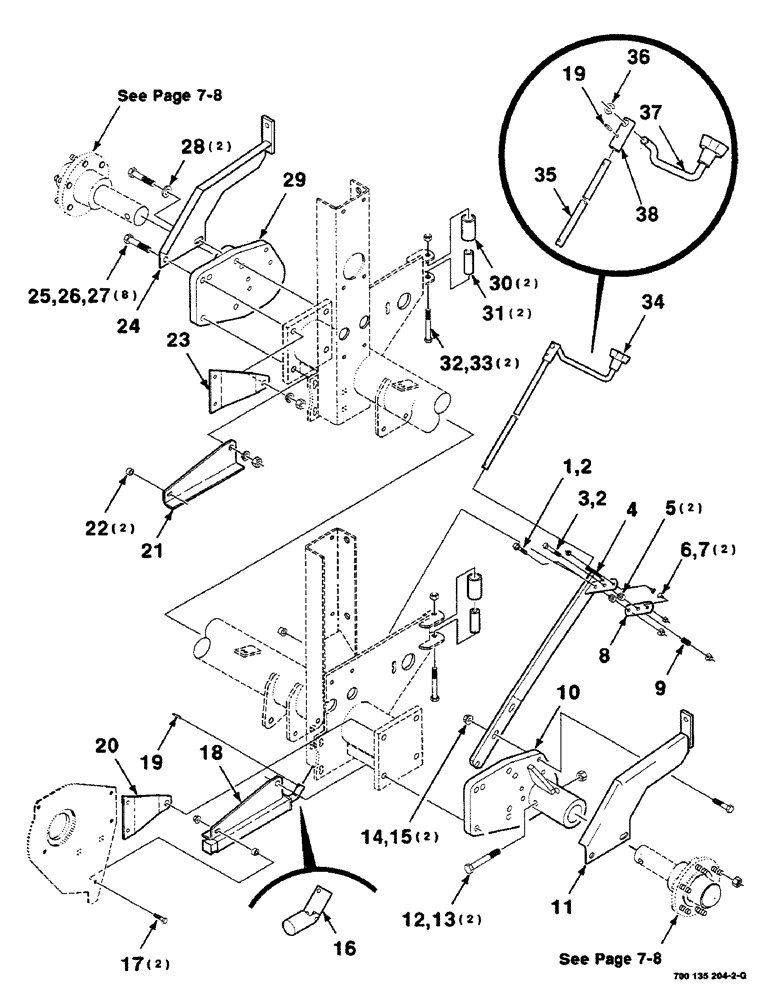

Запчасти Case IH RS451 (7-06) - MAINFRAME, AXLE AND PICKUP CRANK ASSEMBLIES (12) - MAIN FRAME

1

700711084

BOLT

3/8-16 X 1-1/2 HFS GR8

1шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

3

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

4

700135372

SUPPORT

WA

1шт.

5

M42297

SPACER

2шт.

6

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

1/4-20 X 1/2 RHSNB

2шт.

7

1703354

NUT

1/4-20 HFTLN GR/G

2шт.

8

700150891

PLATE

1шт.

9

758342

CABLE

- compression

1шт.

10

700135359

PLATE

WA - left

1шт.

11

700150892

SUPPORT

WA - left

1шт.

12

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

13

230-41110

LOCK NUT,5/8"-11, GA

5/8-11 HTLN GR/B

2шт.

14

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

15

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

2шт.

16

700715754

JOINT

UNIVERSAL JOINT

1шт.

17

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

18

700716093

JACK

- assembly (Includes item 16)

1шт.

19

435-7614

GROOVED PIN,3/16" x 7/8", Type G

Pin, Grooved, 3/16" x 7/8", Type G

2шт.

20

700135377

SUPPORT

- left

1шт.

21

700135374

ANGLE

- right

1шт.

22

6255350

SPACER

2шт.

23

700135378

SUPPORT

- right

1шт.

24

700135868

SUPPORT

WA - right

1шт.

25

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

8шт.

26

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

27

425-1010

NUT,5/8"-11, G5

8шт.

28

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

2шт.

29

700135360

PLATE

WA - right

1шт.

30

700132293

TUBE,38.1 mm OD, 66 mm Length

- roller

2шт.

31

6250351

SPACER

2шт.

32

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2-13 X 4 C

2шт.

33

230-4118

LOCK NUT,1/2"-13, GA

1/2-13 HTLN GR/B

2шт.

34

700715760

CRANK

- assembly (Includes items 19, 37, 38, 39 and 40)

1шт.

35

700132317

CRANK

ROD - crank

1шт.

36

51200194

RETAINER

RING - retaining

1шт.

37

700715780

HANDLE

1шт.

38

700132516

TUBE

1шт.
