(8-38) - HYD. CYL. ASSY., TAILGATE, WITH MESH WRAP, 700717928 HYD. CYL. ASSY. COMPLETE, 2" BORE X 20" STROKE

Запчасти Case IH RS451 (8-38) - HYD. CYL. ASSY., TAILGATE, WITH MESH WRAP, 700717928 HYD. CYL. ASSY. COMPLETE, 2" BORE X 20" STROKE (07) - HYDRAULICS

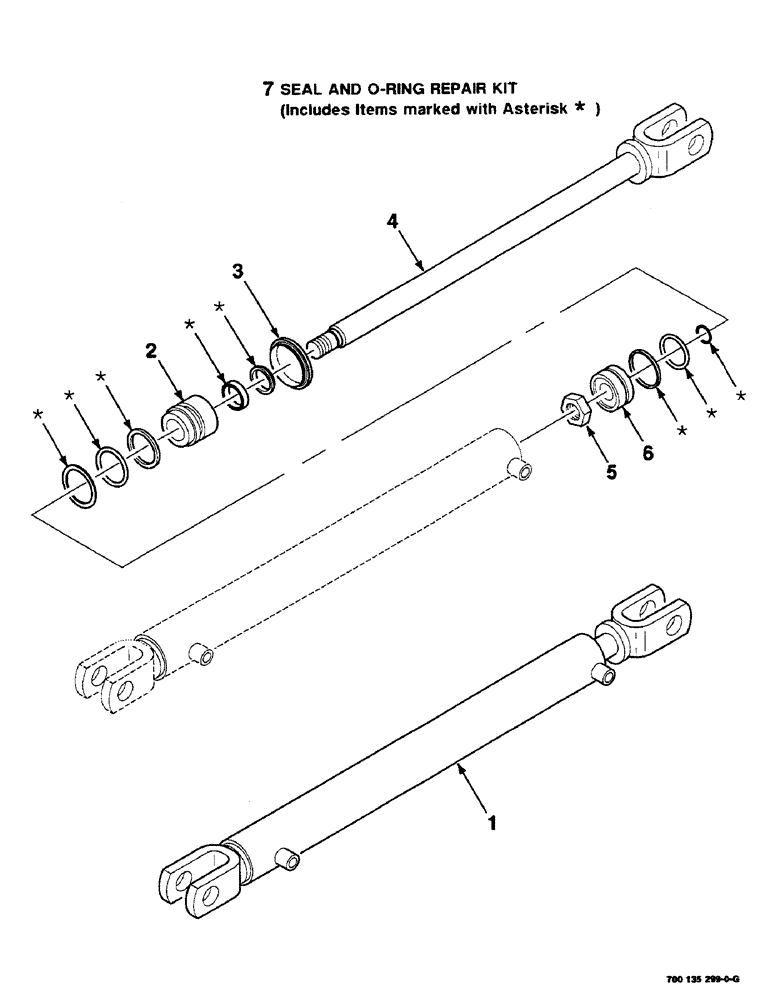

Схема запчастей Case IH RS451 - (8-38) - HYD. CYL. ASSY., TAILGATE, WITH MESH WRAP, 700717928 HYD. CYL. ASSY. COMPLETE, 2" BORE X 20" STROKE (07) - HYDRAULICS
4
3
7
1
2
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700717928

CYLINDER

HYDRAULIC CYLINDER ASM. COMPLETE (2 Inch Bore x 20 Inch Stroke)

1шт.

2

700718149

GUIDE

- rod

1шт.

3

700718150

NUT

SPANNER NUT

1шт.

4

700718154

ROD

- piston

1шт.

5

774315

NUT

7/8-14 UNF HTLN GR C

1шт.

6

700710421

PISTON

1шт.

7

700718146

KIT

SEAL AND O-RING REPAIR KIT, Includes items in art marked with asterisk

1шт.
