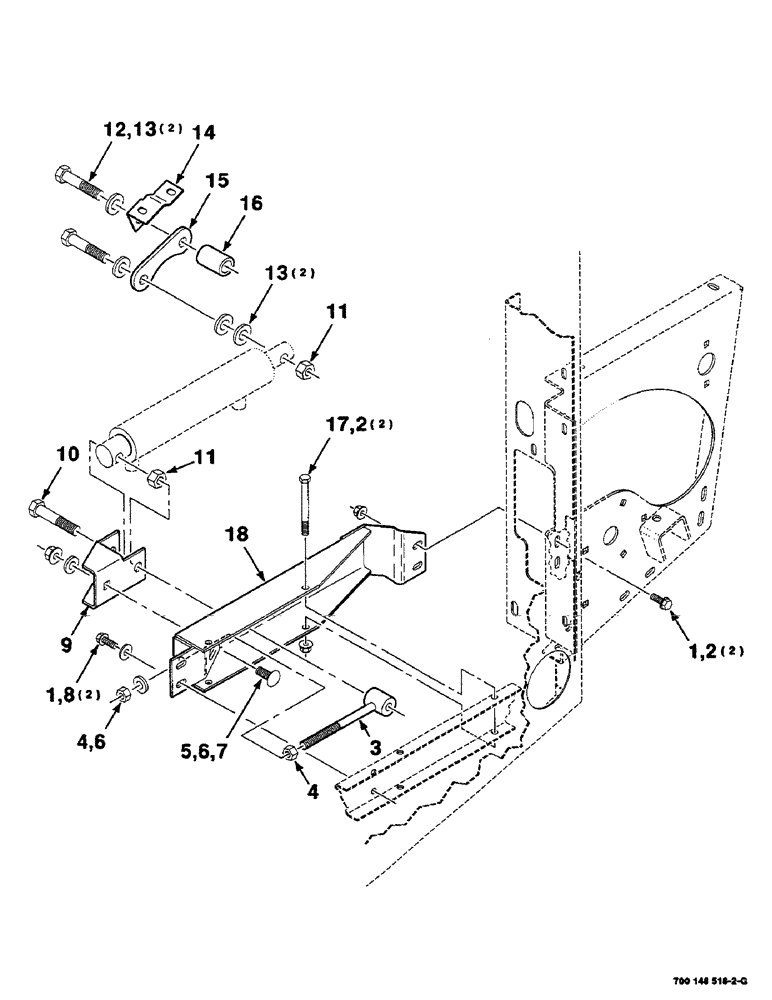

Запчасти Case IH RS451 (8-36) - HYDRAULIC CYLINDER MOUNTING ASSEMBLY, MESH WRAP (07) - HYDRAULICS

1

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

4шт.

3

700148800

SPECIAL BOLT

DRAWBOLT WA

1шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

5

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

1шт.

6

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

2шт.

7

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

1шт.

8

496-81010

WASHER

3/8 HARDENED WIDE PLAIN WASHER

2шт.

9

700148797

MOUNTING PARTS

MOUNTING WA

1шт.

10

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8-11 X 3-1/4 C

1шт.

11

425-1010

NUT,5/8"-11, G5

3шт.

12

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

13

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

4шт.

14

700148804

MOUNTING PARTS

MOUNTING - switch

1шт.

15

700148801

REINFORCEMENT

REINF

1шт.

16

6252563

SPACER

1шт.

17

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3/8-16 X 4 C

2шт.

18

700148792

MOUNTING PARTS

MOUNTING WA

1шт.
