(8-34) - HYDRAULIC CYLINDER ASSEMBLY, MESH WRAP, 700712122 HYD. CYL. ASSY. COMPLETE, 2" BORE DIA. X 8" STROKE

Запчасти Case IH RS451 (8-34) - HYDRAULIC CYLINDER ASSEMBLY, MESH WRAP, 700712122 HYD. CYL. ASSY. COMPLETE, 2" BORE DIA. X 8" STROKE (07) - HYDRAULICS

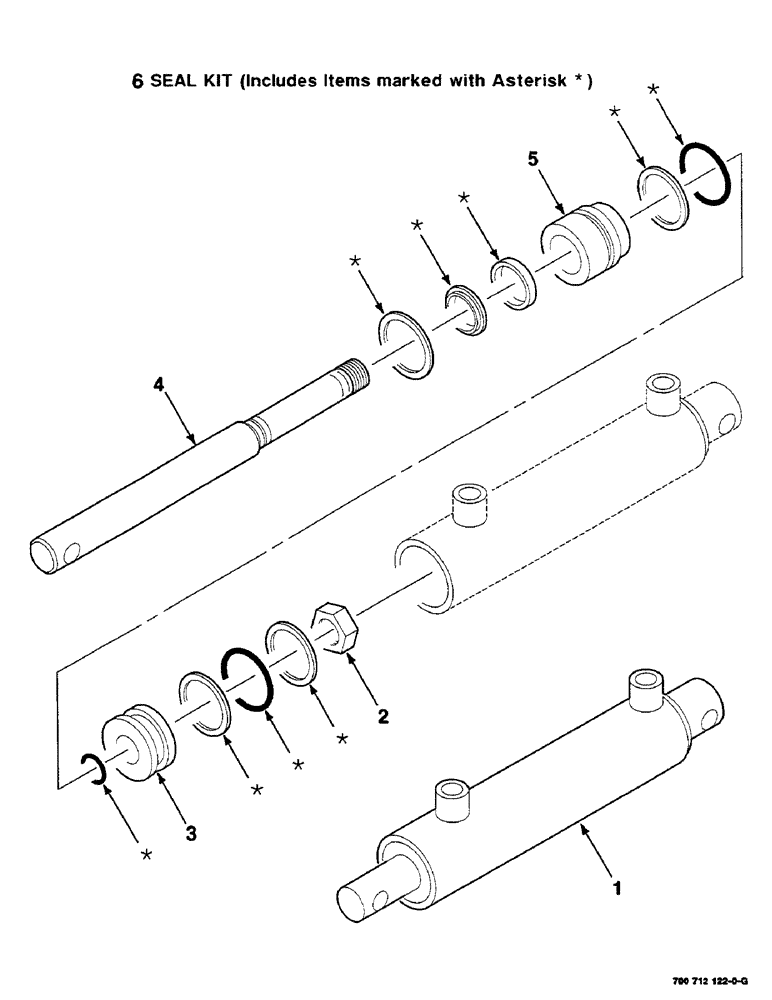

Схема запчастей Case IH RS451 - (8-34) - HYDRAULIC CYLINDER ASSEMBLY, MESH WRAP, 700712122 HYD. CYL. ASSY. COMPLETE, 2" BORE DIA. X 8" STROKE (07) - HYDRAULICS
6
5
2
3
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700712122

CYLINDER

HYDRAULIC CYLINDER ASM. COMPLETE, 2 In. bore diameter x 8 In. stroke

1шт.

2

700707418

JAM NUT

7/8-14 HEX JAM NUT

1шт.

3

700707419

PISTON

1шт.

4

700709465

ROD

1шт.

5

700711112

GUIDE

- rod

1шт.

6

700711114

SEAL KIT

SEAL AND O-RING REPAIR KIT, Includes items in art marked with asterisk

1шт.
