Запчасти Case IH RS451 (8-28) - HYDRAULIC CYLINDER ASSEMBLY, KICKER, 700714707 HYDRAULIC CYL. ASSY. COMPLETE, 2" BORE X 12" STROKE (07) - HYDRAULICS

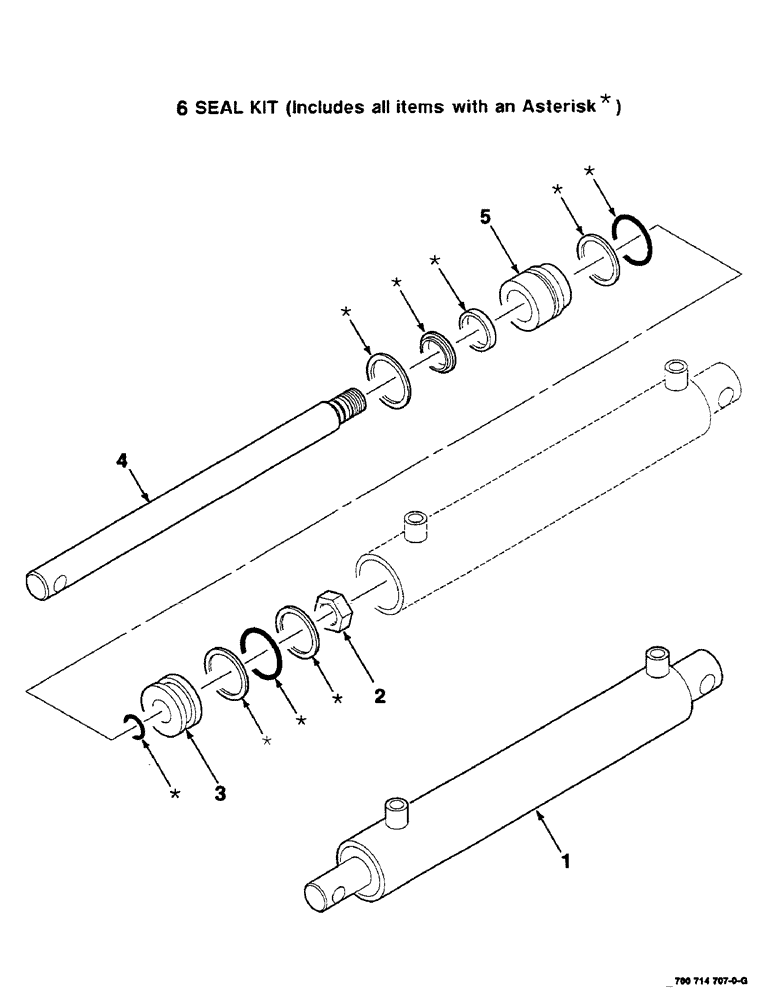

Схема запчастей Case IH RS451 - (8-28) - HYDRAULIC CYLINDER ASSEMBLY, KICKER, 700714707 HYDRAULIC CYL. ASSY. COMPLETE, 2" BORE X 12" STROKE (07) - HYDRAULICS
3
1
6
5
4
2

Артикул

Название

Примечание

Количество

1

700714707

CYLINDER

HYDRAULIC CYLINDER COMPLETE, 2 inch bore x 12 inch stroke

1шт.

2

700707418

JAM NUT

7/8-14 HEX JAM NUT

1шт.

3

700707419

PISTON

1шт.

4

700707421

ROD

1шт.

5

700711112

GUIDE

- rod

1шт.

6

700711954

SEAL KIT

SEAL AND O-RING REPAIR KIT, Includes items in art marked with asterisk

1шт.

Выбрано товаров: 6
