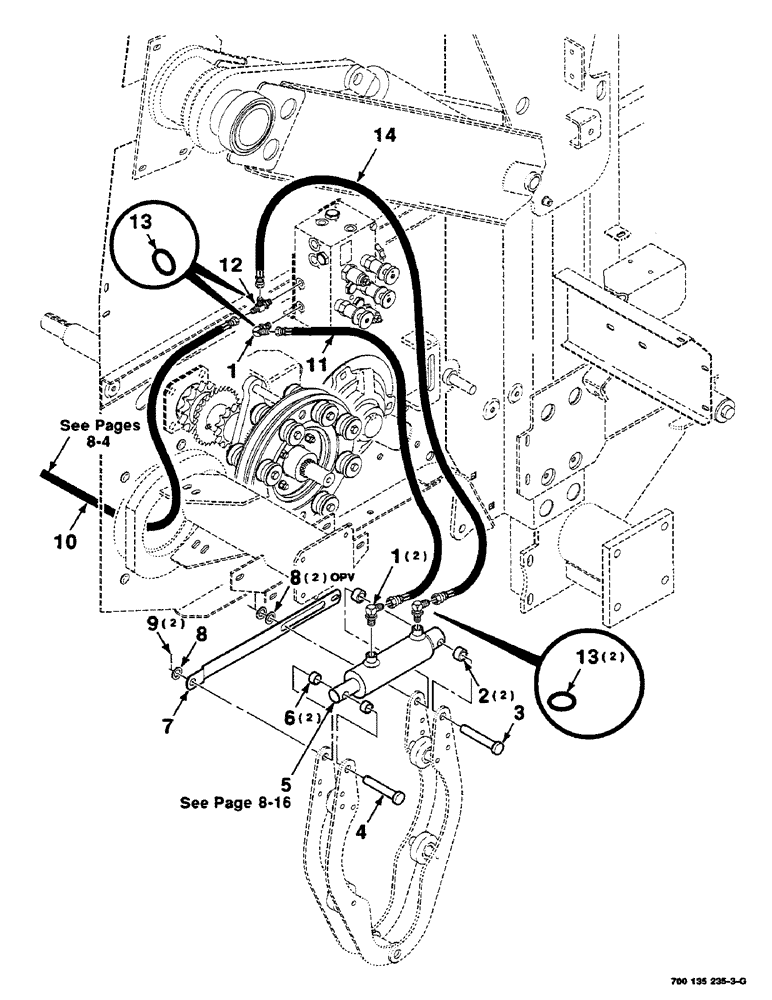

Запчасти Case IH RS451 (8-14) - CLUTCH CONTROL HYDRAULIC ASSEMBLY (07) - HYDRAULICS

1

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

(Includes item 13) 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

3шт.

2

254409

SPACER

2шт.

3

439-11060

HEADED PIN,15.88mm OD x 95.25mm L

5/8 X 3-3/4 CLEVIS PIN

1шт.

4

863498

CLEVIS PIN

5/8 X 3-1/2 CLEVIS PIN

1шт.

5

700711910

CYLINDER ASSY.

CYLINDER ASSEMBLY - hydraulic

1шт.

6

320993R1

SPACER,7/8" Tube x 1/2"

2шт.

7

700151475

SUPPORT

- actuator

1шт.

8

52233

BUSHING

5/8 X 14 GAUGE NRMB

3шт.

9

432-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

2шт.

10

700714822

HYDRAULIC HOSE,0.38" ID x 110.24", SAE J517, SAE J516, SAE J343

HOSE - hydraulic

1шт.

11

700709249

HYDRAULIC HOSE,6.35 mm ID x 650.00 mm, SAE 100R1

6.35 mm ID x 650.00 mm, SAE 100R1

1шт.

12

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Straight run (Includes item 13) 9/16"-18, 37º x 9/16"-18, O-Ring Run

1шт.

13

738468

O-RING

3шт.

14

700714593

HYDRAULIC HOSE,0.25" ID x 17.72", SAE J517, SAE J516, SAE J343

HOSE - hydraulic

1шт.
