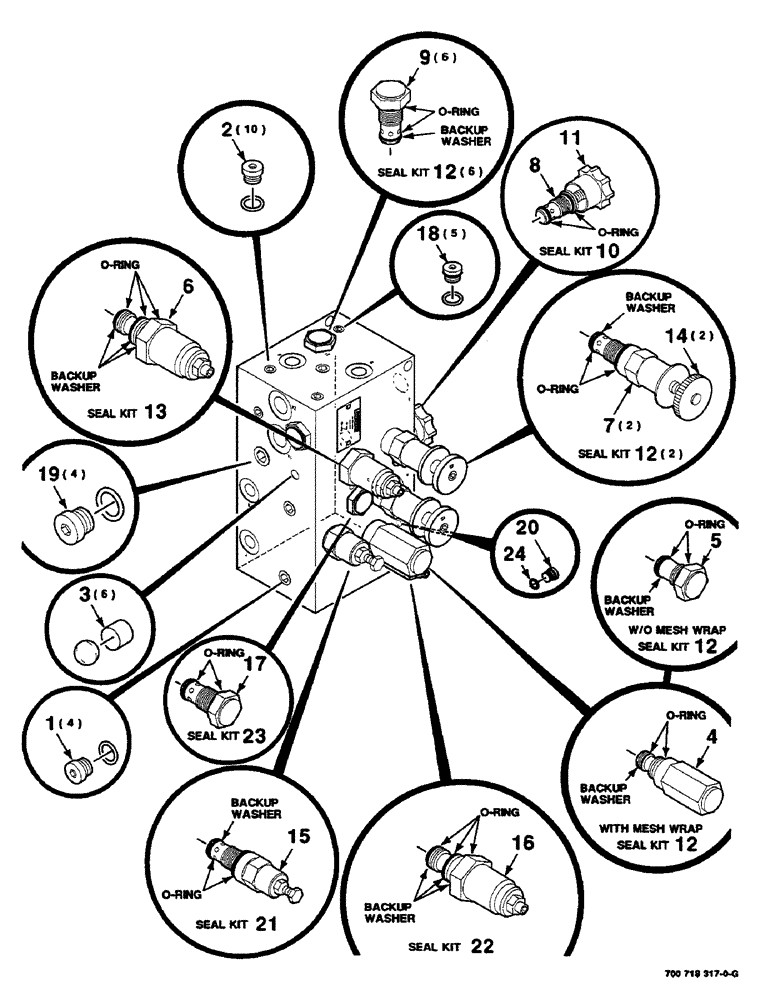

Запчасти Case IH RS451 (8-08) - HYDRAULIC CONTROL VALVE ASSEMBLY, BALE TENSION, 700718317 HYDRAULIC VALVE ASSEMBLY COMPLETE (07) - HYDRAULICS

1

700707840

PLUG

9/16-18 PLUG, SAE (Includes O-Ring)

4шт.

2

700715661

PLUG

1/2-20 PLUG, SAE

10шт.

3

700718282

PLUG

- expander

6шт.

4

700717962

VALVE

RELIEF VALVE, 3000 PSI (With Mesh Wrap)

1шт.

5

700706602

PLUG

CAVITY PLUG - C-10-2 (Includes item 12) (W/O Mesh Wrap)

1шт.

6

700718278

VALVE

COUNTERBALANCE VALVE

1шт.

7

700717674

VALVE

RELIEF VALVE, 2000 PSI

2шт.

8

700715658

VALVE

NEEDLE VALVE

1шт.

9

700715651

VALVE

CHECK VALVE

6шт.

10

700715663

KIT

- seal

1шт.

11

700715674

KNOB

KIT - knob

1шт.

12

149942C1

SEAL KIT

KIT - seal

10шт.

13

700718410

KIT

- seal

1шт.

14

700715666

KNOB

KIT - knob

2шт.

15

700718279

VALVE

kick down sequence

1шт.

16

700718280

VALVE

COUNTERBALANCE VALVE

1шт.

17

700717726

VALVE

PILOTED CHECK VALVE

1шт.

18

700707835

PLUG

7/16-20 PLUG, SAE (Includes O-Ring)

5шт.

19

700711505

PLUG

3/4-16 PLUG, SAE

4шт.

20

218-5151

PLUG,Hex Hd, 5/16"-24 ORB

5/16-24 PLUG, SAE (Includes item 24)

1шт.

21

700717670

KIT

- seal

1шт.

22

700715665

KIT

- seal

1шт.

23

700718409

KIT

- seal

1шт.

24

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk

1шт.
