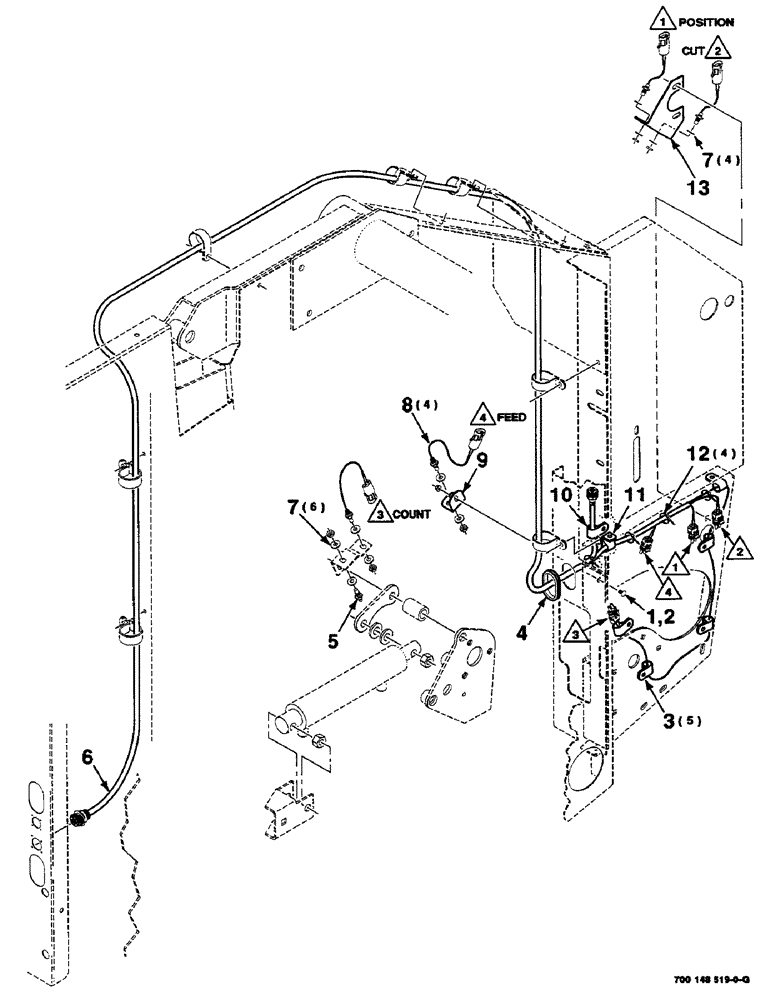

Запчасти Case IH RS451 (4-20) - ELECTRICAL ASSEMBLY, MESH WRAP (06) - ELECTRICAL

1

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 X 3/4 RHSSNB

1шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

1шт.

3

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

5шт.

4

8027427

GROMMET

1шт.

5

700710211

ACTUATOR

1шт.

6

700717415

HARNESS

- wire, mesh wrap

1шт.

7

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

10шт.

8

700119161

SWITCH

- assembly

4шт.

9

700148803

MOUNTING PARTS

MOUNTING - switch

1шт.

10

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

11

CAS755777

CLAMP

1шт.

12

306132C1

CABLE TIE,14.5" L

TIE - clamp 14 in

4шт.

13

700148802

MOUNTING PARTS

MOUNTING - switch

1шт.
