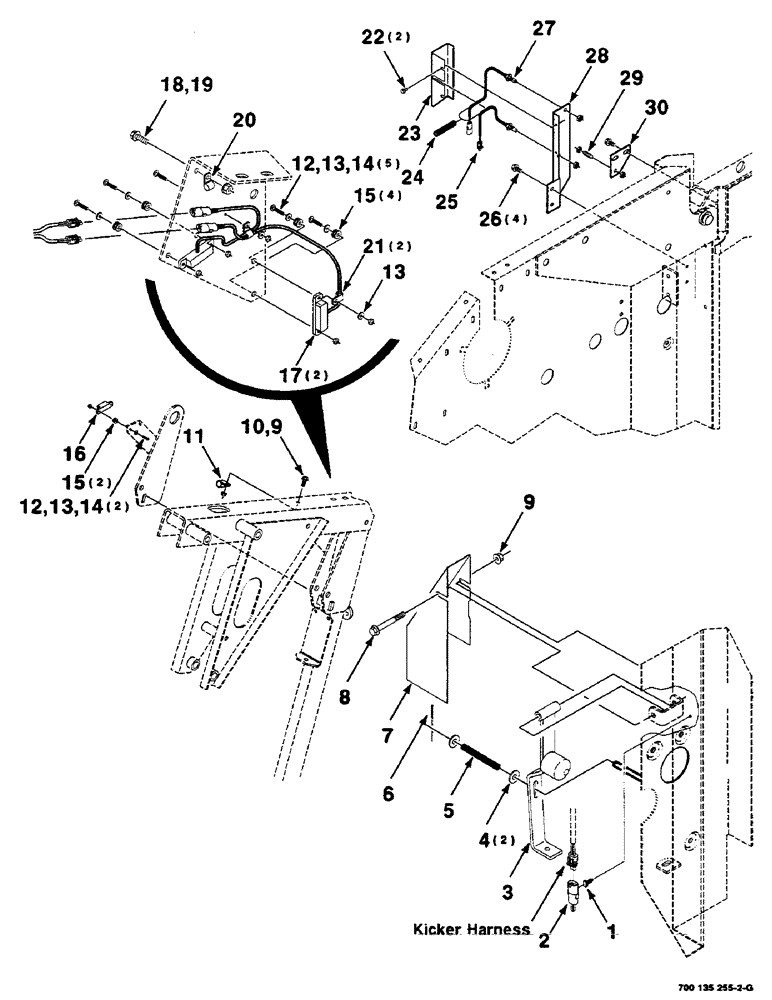

Запчасти Case IH RS451 (4-16) - ELECTRICAL ASSEMBLY, KICKER (06) - ELECTRICAL

1

700718506

CLIP

- plastic, barbed

1шт.

2

700716454

PLUG

JUMPER

1шт.

3

700135980

SUPPORT

WA

1шт.

4

496-81010

WASHER

3/8 HARDENED WIDE PLAIN WASHER

2шт.

5

700707978

SPRING

- compression

1шт.

6

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

7

700150917

SHIELD

WA

1шт.

8

700716200

BOLT

HFS 3/8-16 X 3

1шт.

9

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

10

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

1шт.

11

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Line 3/4", Insul, 3/8" Bolt

1шт.

12

700710188

SCREW

#6-32 X 3/4 CRPHMS (Stainless)

7шт.

13

700710187

WASHER

#6 WPW (Stainless)

8шт.

14

700710189

LOCK NUT

#6-32 LHSN (Stainless)

7шт.

15

700710199

GROMMET

6шт.

16

700709996

SWITCH

ACTUATOR - switch

1шт.

17

700710208

ROTARY SWITCH

SWITCH (N.O.)

2шт.

18

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4-20 X 3/4 HWHMS

1шт.

19

1703354

NUT

1/4-20 HFTLN GR/G

1шт.

20

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

1шт.

21

515-2179

CLAMP,5/16", Insul, 1/4" Bolt

Line 5/16", Insul, 1/4" Bolt

2шт.

22

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

23

700150915

SHIELD

1шт.

24

702400102

CONDUIT

- split

1шт.

25

700718012

SWITCH

- assembly (NC)

1шт.

26

281-34912

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 X 3/4 HWHTCTS

4шт.

27

700119161

SWITCH

- assembly (NO)

1шт.

28

700150916

MOUNTING PARTS

MOUNTING - switch

1шт.

29

700710211

ACTUATOR

1шт.

30

700135943

MOUNTING PARTS

MOUNTING - actuator

1шт.
