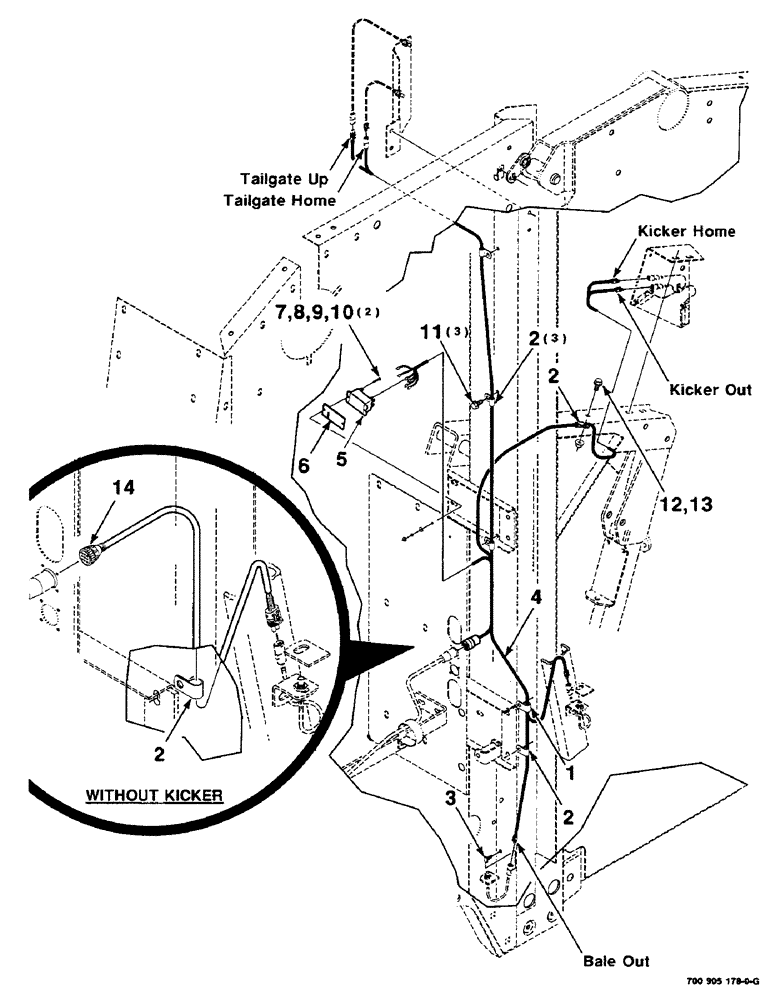

Запчасти Case IH RS451 (4-14) - ELECTRICAL ASSEMBLY, KICKER CONTROL (06) - ELECTRICAL

1

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

Line 1/2", Insul, 1/2" Bolt

1шт.

2

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

Line 3/8", Insul, 3/8" Bolt

6шт.

3

700718506

CLIP

- plastic, barbed

1шт.

4

700716058

HARNESS

- wire, kicker (Without mesh wrap)

1шт.

700718006

HARNESS

- wire, kicker (With mesh wrap)

1шт.

5

700716828

RELAY

- electrical

1шт.

6

700718448

GASKET

- relay

1шт.

7

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

GR60M Cross Pan Hd, #8-32 x 1/2"

2шт.

8

495-21019

WASHER,#8

2шт.

9

492-11008

LOCK WASHER,#8

Washer, Lock, #8

2шт.

10

225-14108

NUT,#8-32

H GR2 #8-32

2шт.

11

281-34912

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 X 3/4 HWHTCTS

3шт.

12

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

1шт.

13

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

1шт.

14

700716059

CABLE

- electric (Without kicker)

1шт.
